Record THERMCORD RC 2 /RC 3 Sliding Door

In conjunction with matching insulating glazing and corresponding side panels, the THERMCORD telescope is primarily used as an external door in areas where – even temporarily – there is a high temperature gradient and the space conditions are not optimal.

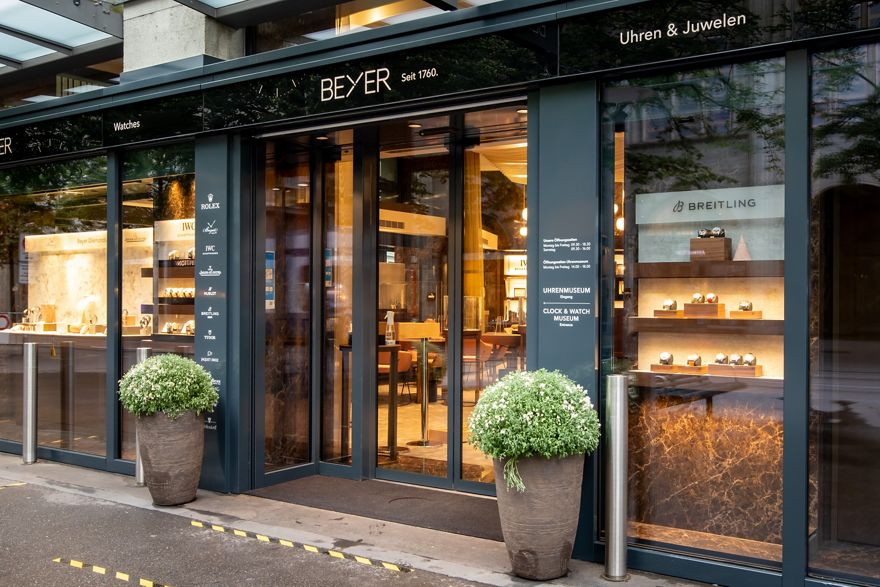

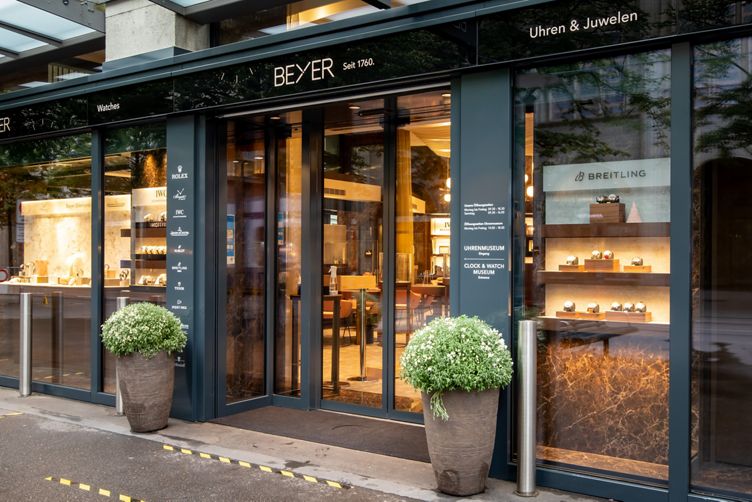

Record THERMCORD RC 2 / RC 3 is the ideal entrance door for your retail store, hotel or office building. You will receive effective burglar resistance in combination with efficient, energy-saving properties, which reduce your heating and air-conditioning costs.

Key features

Burglar resistance class RC 2 / RC 3 according to EN 1627 for increased safety requirements
A thermally separated door frame prevents any heat exchange between the inside and the outside of the building
Class P5A break-in resistant safety glass in accordance with EN 356
UD value up to 1.5 W/m²K according to EN 16 361

Electronic multipoint locking system for easy locking at the push of a button as standard
The standard drive, which has proved its worth hundreds of thousands of times
Low maintenance costs
Innovative sealing system for increased airtightness (optional)

Record THERMCORD product line

The Record THERMCORD is particularly suitable for break-in protection, since the door frames are designed to be extremely strong to ensure thermal separation. Two intertwined, V-shaped profiles ensure a level of sturdiness that provides immense resistance to attacks by burglars. Moreover, because these two V-profiles do not touch each other at any point inside the door, any heat exchange between the inside and outside of the door system is prevented. This property reduces heating costs by eliminating any hidden, permanent outflow of heat. The opposite also applies – heat is prevented from entering, thereby preventing indoor air at lower temperatures produced by costly air-conditioning from escaping.

THERMCORD D-STA RC 2

Drive Dimensions

Without side piece (depth x height): 160 x 200 mm
With side piece (depth x height): 197 x 200 mm
Width of passage A: 800 – 3000 mm
Height of passage G: max. 3000 mm
Support beam length F: 2A + 250 (min. 1950) mm
Total height J: G + 200 mm
Door leaf weight: 2 x 120 kg
Door leaf weight DUO/RED: 2 x 200 kg

General specifications

Thermal value: UD 1.6 W / m2 K

Operating conditions

Ambient temperature: − 15° to + 50° C
Humidity range: up to 85 % rel. humidity, non-condensing

THERMCORD E-STA RC 2

Drive Dimensions

Without side piece (depth x height): 160 x 200 mm
With side piece (depth x height): 197 x 200 mm
Width of passage A: 800 – 2500 mm
Height of passage G: max. 3000 mm
Support beam length F: 2A + 125 mm
Total height J: G + 200 mm
Door leaf weight: 1 x 200 kg
Door leaf weight DUO/RED: 1 x 250 kg

General specifications

Thermal value: UD 1.5 W / m2 K

Operating conditions

Ambient temperature: –15 °C to +50 °C
Humidity range: up to 85 % rel. humidity, non-condensing
