Key features

Noticeably familiar

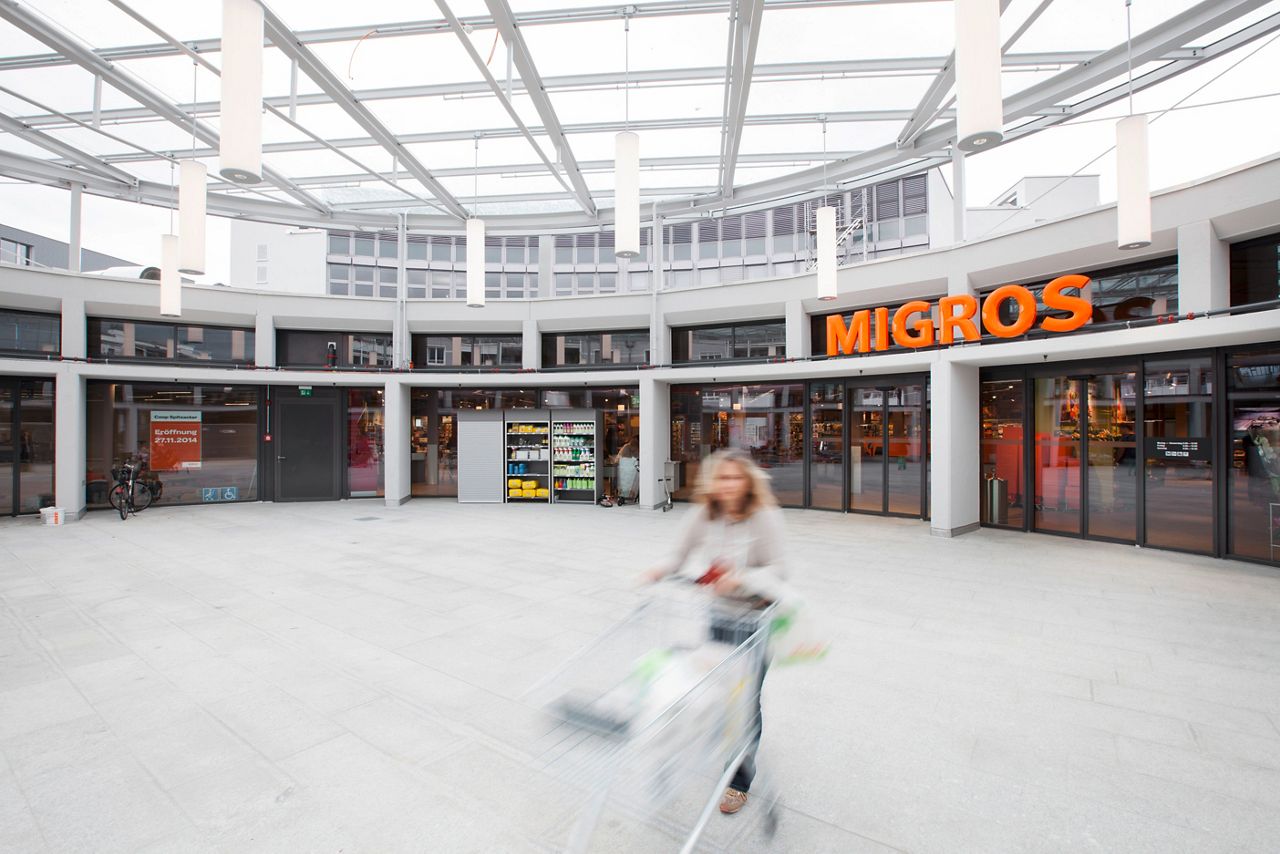

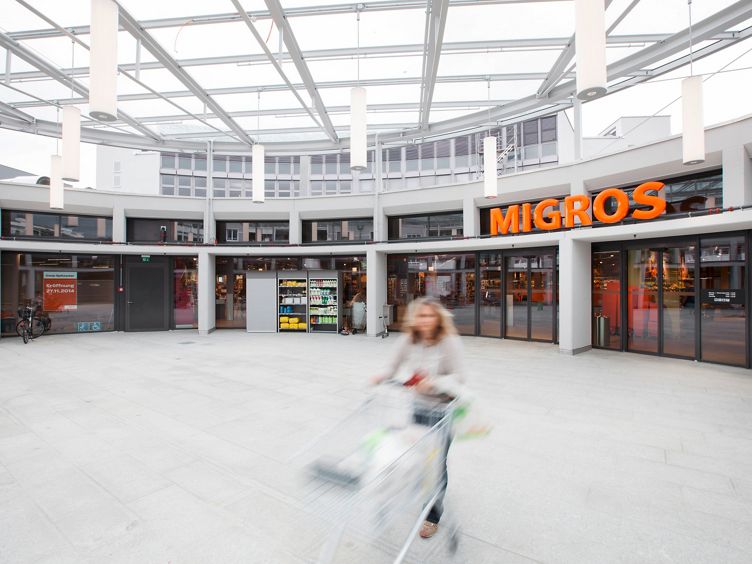

Barely distinguishable except for its thermal performance, THERMCORD can be subtly incorporated into your global concept and is therefore perfectly suited to replace old installations and complete conventional door systems.

Well-known control concept

THERMCORD is entirely new. For us, this entails extensive measures concerning its handling. However, as the drive, controller and control unit come from the proven components of record system 20, the difference for our customers is only of limited scope: operation remains menu-based via the record BDE-D display and maintenance costs remain as low as before, thanks to the ultra-silent drive elements from the record STA 20 range, which have proved themselves hundreds of thousands of times. Your heating and air-conditioning costs, on the other hand, will be barely recognisable.

Benefits

  • Short amortisation period
  • Effective thermal barrier despite narrow door profiles (just 38 mm thick)
  • Adapted to visually match our conventional sliding doors
  • Explicitly focused on use in automatic doors
  • Record standard drives with associated benefits
  • Well-known control concept
  • THERMCORD D-STA

    Drive Dimensions

    • Without side piece (depth x height): 157 x 150 mm / 167 x 200 mm
    • With side piece (depth x height): 210 x 150 mm / 210 x 200 mm

    Adjustable parameters

    • Opening speed up to 0.75

    General technical specifications

    • Width of passage A: 800 – 3 000 mm
    • Height of passage G: max. 3 000 mm
    • Support beam length: F 2A+250 mm
    • Total height J: G + 150 / 200 mm
    • Door leaf weight max.: 2 x 120 kg
    • Door leaf weight DUO/RED max.: 2 x 150 kg
    • Power supply voltage: 100 – 240 V AC, 50/60 Hz
    • Rated power: 90 W
    • Power consumption max.: 250 – 300 W
    • Consumption in standby mode: 25 W
    • Thermal value UD up to: 1.1 W / m2 K
    • Gearbox worm gear
    • Drive toothed belt

    Operating conditions

    • Ambient temperature: − 15° to + 50°C
    • Humidity range up to: 85% rel. humidity, non-condensing

    Functional safety

    • Standard compliance: EN 16 005, DIN 18 650, EN 16 361

    THERMCORD E-STA

    Drive Dimensions

    • Without side piece (depth x height): 157 x 150 mm / 167 x 200 mm
    • With side piece (depth x height): 210 x 150 mm / 210 x 200 mm

    Adjustable parameters

    • Opening speed up to: 0.75

    General technical specifications

    • Width of passage A: 800 – 2 500 mm
    • Height of passage G: max. 3 000 mm
    • Support beam length F: max.2A+125 mm
    • Total height J: G + 150 / 200 mm
    • Door leaf weight mmax.: 1 x 150 kg
    • Door leaf weight DUO/RED max.: 1 x 150 kg
    • Power supply voltage: 100 – 240 V AC, 50/60 Hz
    • Rated power: 90 W
    • Power consumption max.: 250 – 300 W
    • Consumption in standby mode: 25 W
    • Thermal value UD up to: 1.1 W / m2 K
    • Gearbox worm gear
    • Drive toothed belt

    Operating conditions

    • Ambient temperature: − 15° to +50°C
    • Humidity range up to: 85% rel. humidity, non-condensing

    Functional safety

    • Standard compliance: EN 16 005, DIN 18 650, EN 16 361
