i-Record
With i-Record, setup and service are faster and easier—right from your phone. Bluetooth® connectivity and a user-friendly app put smarter door management in your hands.
Key features
The Record system 20 enables the construction of a vast range of door models. Designed using modular construction principles, it can be adapted to suit the widest range of conditions and yet is largely based on the same components. This shortens installation time and reduces service and maintenance costs.
Design
For the record system 20, there are 20 mm thick aluminium profiles available for 10 mm thick single glazed leaves, or 32 mm thick profiles suitable for 24 mm thick insulating glass to allow the greatest possible transparency. Both profiles and drive unit cover can be anodized or powder-coated.
Drive unit heights for both the normal, DUO and RED versions are available in either 108 mm or 150 mm; 200 mm for the reinforced models.
The drive unit can be fitted to the lintel, freestanding or integrated in the ceiling.
Mechanics
The absence of noise is the most striking feature of record automatic doors. Our combination of short, low-momentum toothed belts, rollers made from hard-wearing, low-noise plastic, acoustically decoupled running tracks, guide pulley wheels with ball bearings and door leaf guides with specially developed guide profiles all contribute to an exceptionally quiet running door.
Our efforts to produce the quietest automatic doors possible can also be seen in their operation. They open and close exceptionally quietly, which is indicative of the highest precision and the perfect matching of materials; this precision engineering can also be seen in the harmonious sequence of door leaf movements.
Electronics
The record system 20 components can communicate with one another interactively, which, among other things, enhances safety and security. The ability of drive, sensors and remote to communicate enables continuous monitoring of component status. The operational status of the door system and its individual electronic components also continuously undergo plausibility checks. Thanks to its learning capacity, the potential of the unit to malfunction is reduced to a minimum.

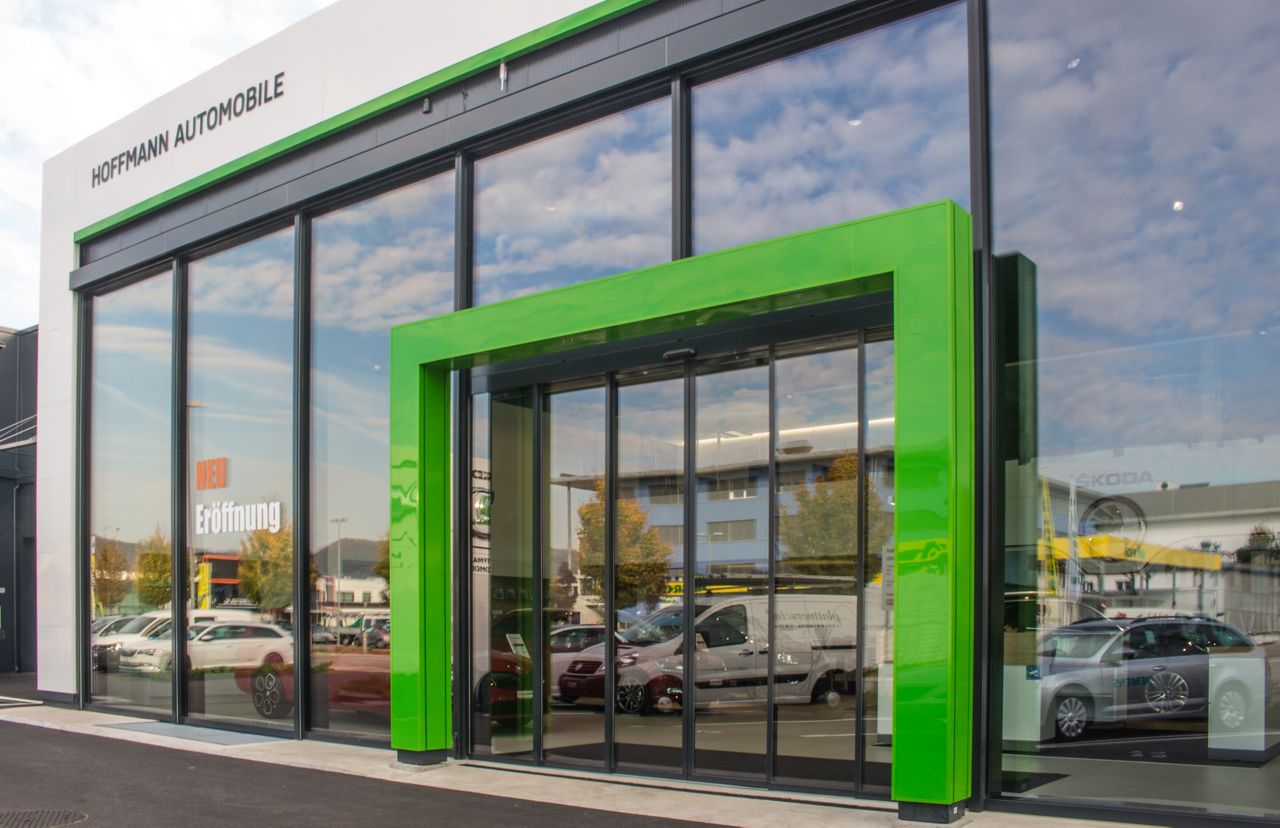

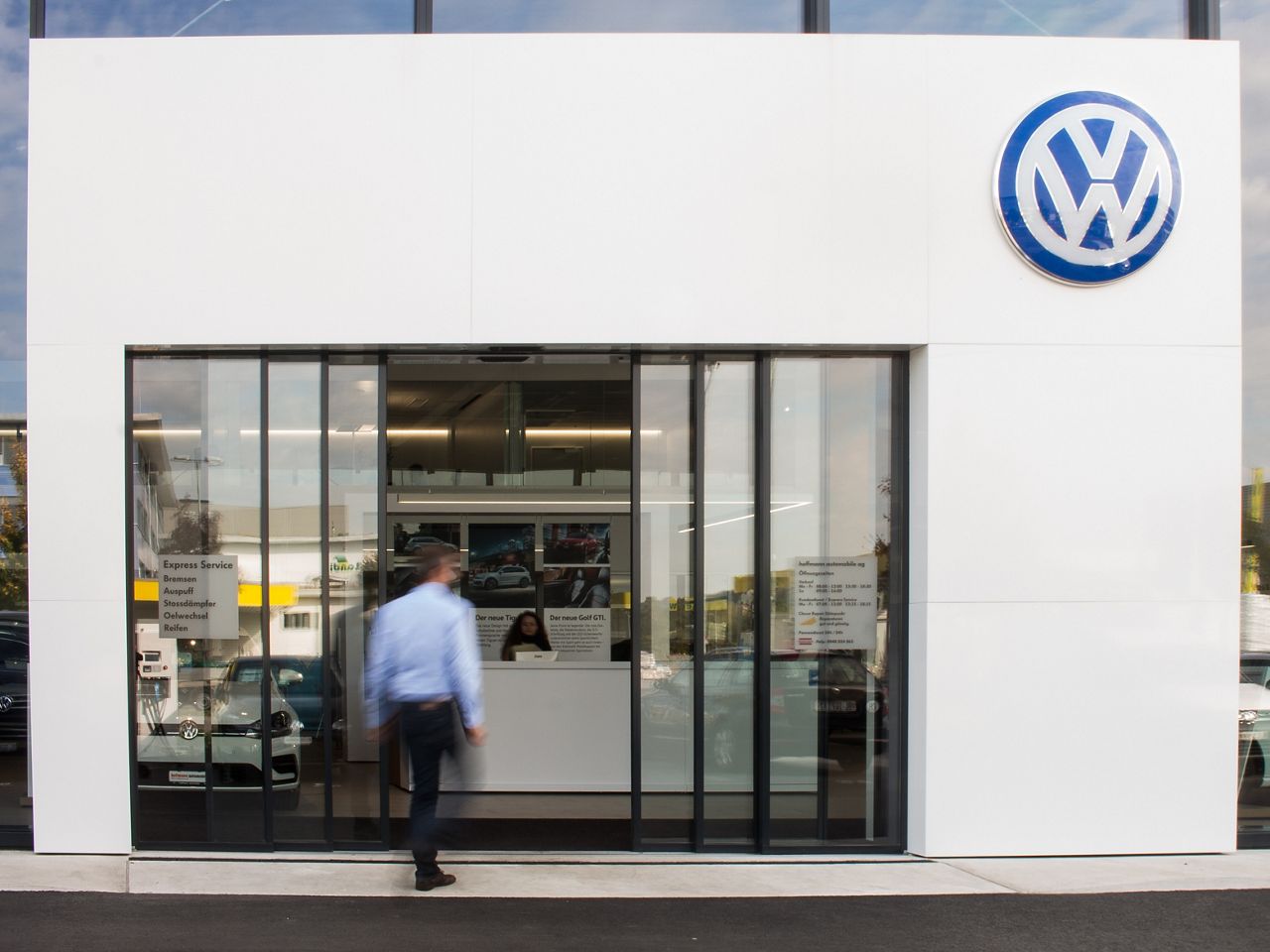

Record D-TSA 20
Drive Dimensions
- Height: 108 / 150 / 200 mm
- Without side piece (depth x height): 222 x 108 / 150; 225 x 200 mm
- With side piece (depth x height): 259 x 108 / 150; 262 x 200 mm
Adjustable parameters
- Open time: Can be selected from 0 to 60 seconds
General specifications
- Width of passage A: 1 200 – 4 000 mm
- Height of passage G: 3 000 mm
- Support beam length F: min 1.5 x A + 200 mm
- Total height J: G + 108 / 150 / 200 mm
- Door leaf weight: 4 x 80 kg
- Door leaf weight DUO/RED: 4 x 90 kg
- Power supply voltage: 100 – 240 V AC
- Rated power: 90 W
- Consumption in standby mode: 25 W
Operating conditions
- Ambient temperature: − 15 °C to + 50 °C
- Humidity range: Up to 85% relative humidity, non-condensing
- Type of protection: IP 20
Functional safety
- Standard compliance: 2006/42/EG; EN 16 005

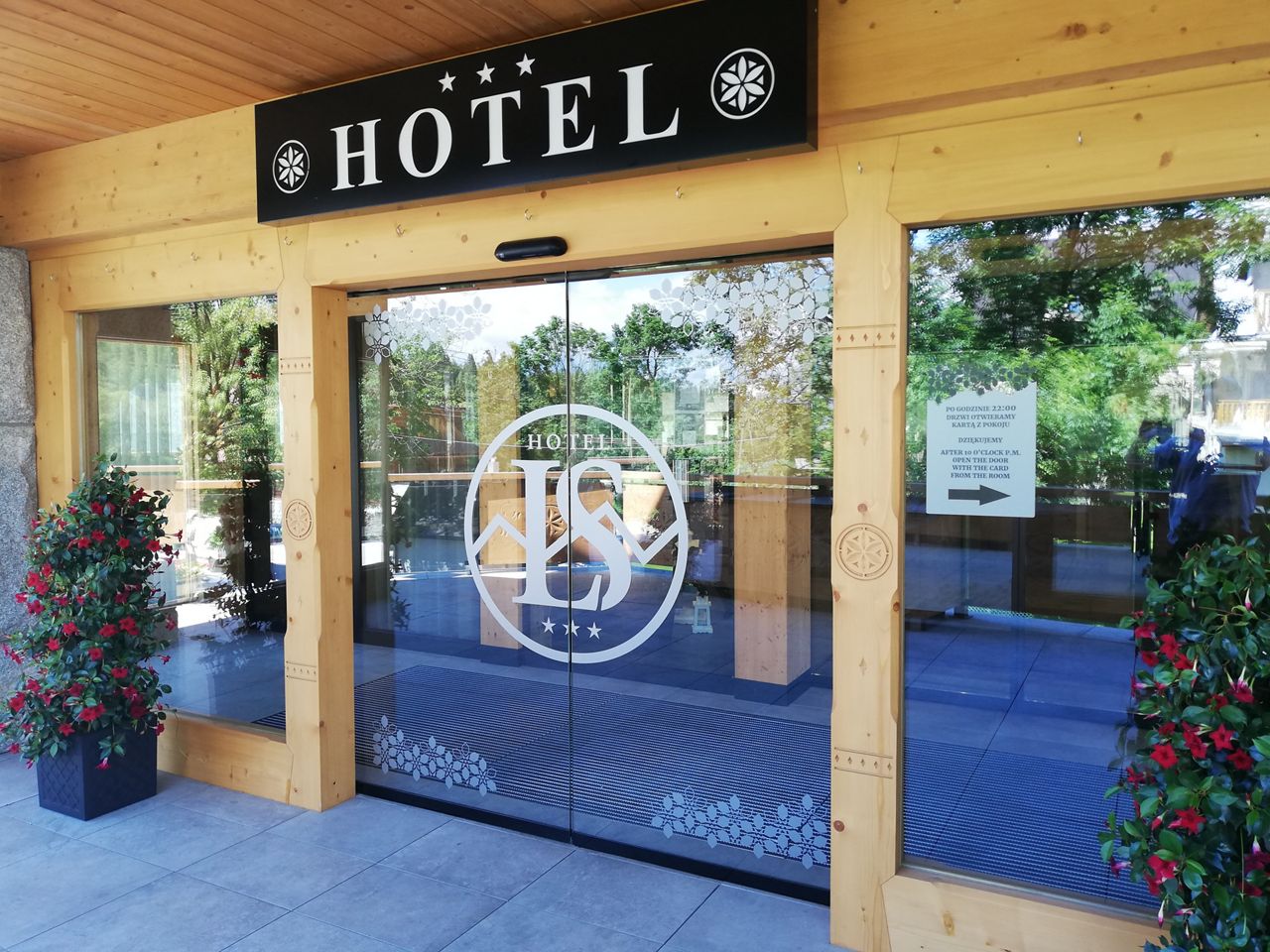

Record E-TSA 20
Drive Dimensions
- Height: 108 / 150 / 200 mm
- Without side piece (depth x height): 222 x 108 / 150; 225 x 200 mm
- With side piece (depth x height): 259 x 108 / 150; 262 x 200 mm
Adjustable parameters
- Open time: Can be selected from 0 to 60 seconds
General specifications
- Width of passage A: 800 – 3 000 mm
- Height of passage G: 3 000 mm
- Support beam length F: min 1.5 x A + 100 mm
- Total height J: G + 108 / 150 / 200 mm
- Door leaf weight: 2 x 90 kg
- Door leaf weight DUO/RED: 2 x 130 kg
- Power supply voltage: 100 – 240 V AC
- Rated power: 90 W
- Consumption in standby mode: 25 W
Operating conditions
- Ambient temperature: − 15 °C to + 50 °C
- Humidity range: Up to 85% relative humidity, non-condensing
- Type of protection: IP 20
Functional safety
- Standard compliance: 2006/42/EG; EN 16 005
BIM objects
Product Elevation drawings
Product Horizontal drawings
Product Vertical drawings
