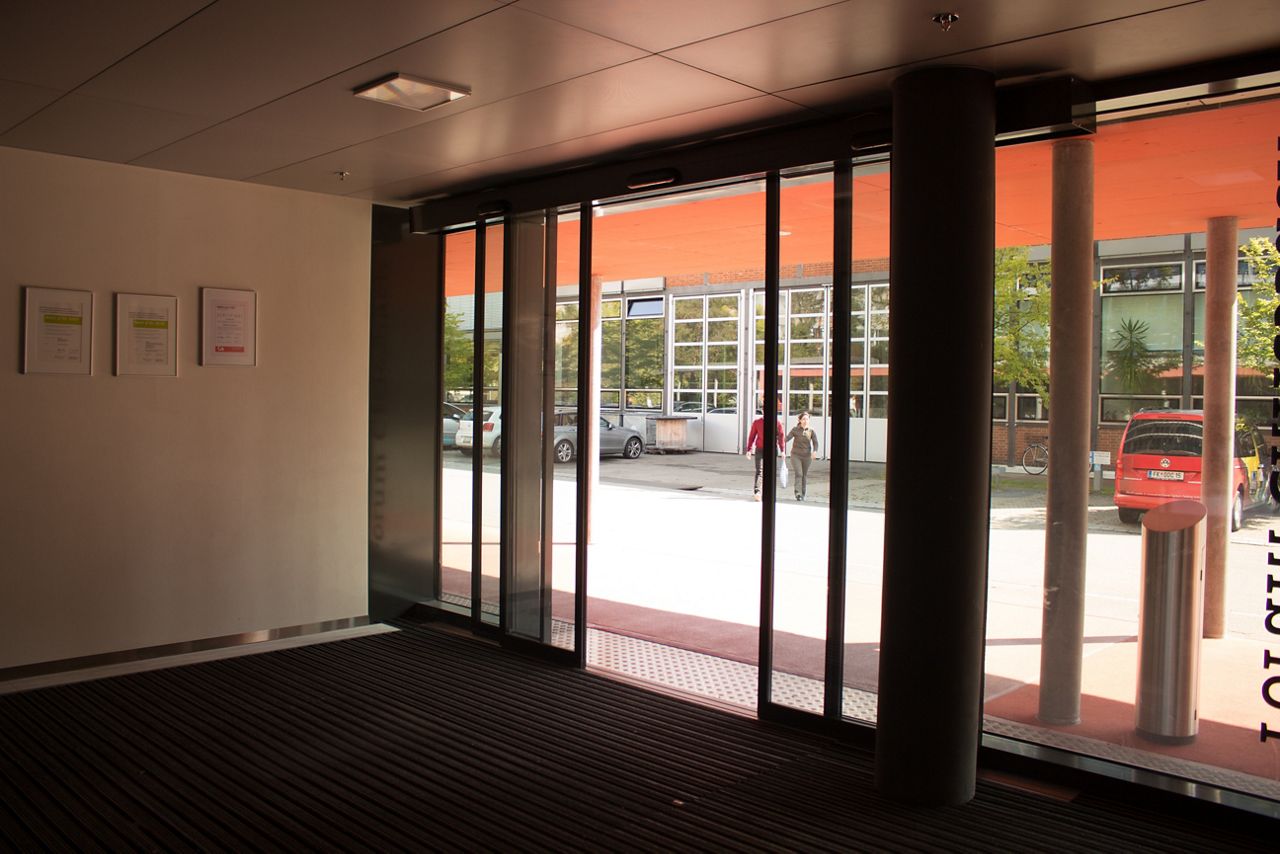

Record THERMCORD Telescopic Sliding Door

Record THERMCORD Telescopic Sliding Door is an automatic door system that has thermally separated door profiles with heat insulating properties.

Hardly distinguishable from the outside – the THERMCORD carefully integrates into your overall concept and is therefore ideal for replacing old systems and complementing conventional door systems. The THERMCORD Telescopic Sliding Door seamlessly joins the THERMCORD product range already known on the market.

Key features

Short payback period
Effective thermal barrier despite narrow door profiles with a depth of only 38 mm
Optically matched to conventional telescopic sliding doors

Record standard drives with all their advantages
Familiar operating concept

Well known operating concept

The drive, the control and the operation are proven components of the Record system 20. The THERMCORD Telescopic Sliding Door is controlled via the Record BDE-D operator display and the maintenance costs remain unchanged thanks to drive elements from the 100,000-fold proven, whisper-quiet sliding door operators of the Record STA 20 series. However, you will not recognize your heating and air conditioning bills as they will be much lower.

E-TSA THERMCORD

General specifications

Width of passage A: 1000 – 3000 mm
Height of passage G: max. 3000 mm
Support beam length F: 1.5 x A + 125 mm
Total height J: G + 150 / 200 mm
Door leaf weight max.: 2 x 130 kg
Door leaf weight DUO/RED: max. 2 x 170 kg
Power supply voltage: 100 – 240 V AC, 50 / 6 Hz
Rated power: 90 W
Power consumption max.: 250 – 300 W
Consumption in standby mode: 25 W
Thermal value UD min.: 1.1 W / m2 K
Gearbox Schneckengetriebe
Drive Zahnriemen

Functional safety

Standard compliance: EN 16 005, DIN 18 650, EN 16 361

D-TSA THERMCORD

General specifications

Width of passage A: 1500 – 4000 mm
Height of passage G: max. 3000 mm
Support beam length F: 1.5 x A + 250 mm
Total height J: G + 150 / 200 mm
Door leaf weight max.: 4 x 80 kg
Door leaf weight DUO/RED max.: 4 x 130 kg
Power supply voltage: 100 – 240 V AC, 50 / 60 Hz
Rated power: 90 W
Power consumption max.: 250 – 300 W
Consumption in standby mode: 25 W
Thermal value: UD W / m2 K
Gearbox Schneckengetriebe
Drive Zahnriemen

Functional safety

Standard compliance: EN 16 005, DIN 18 650, EN 16 361
