Record FTA 20 Folding Door

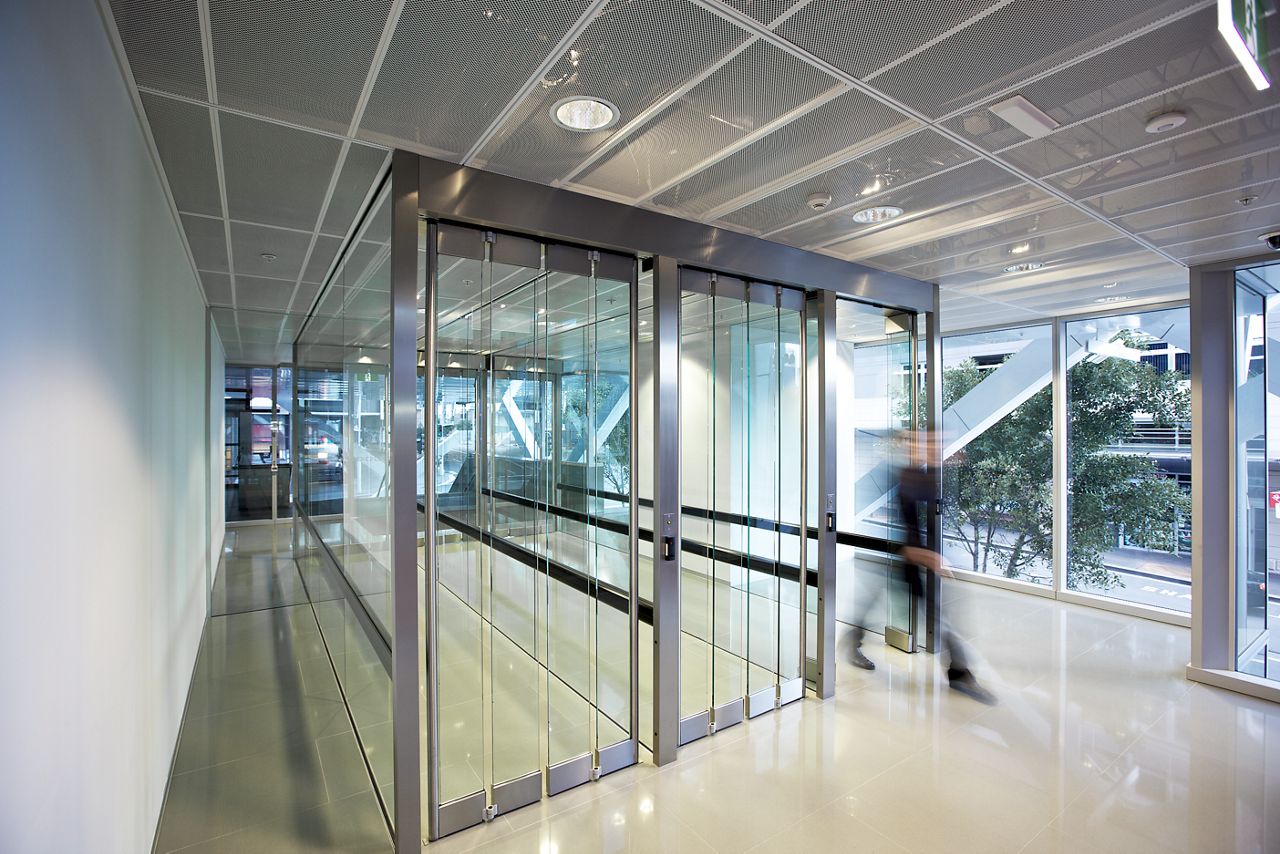

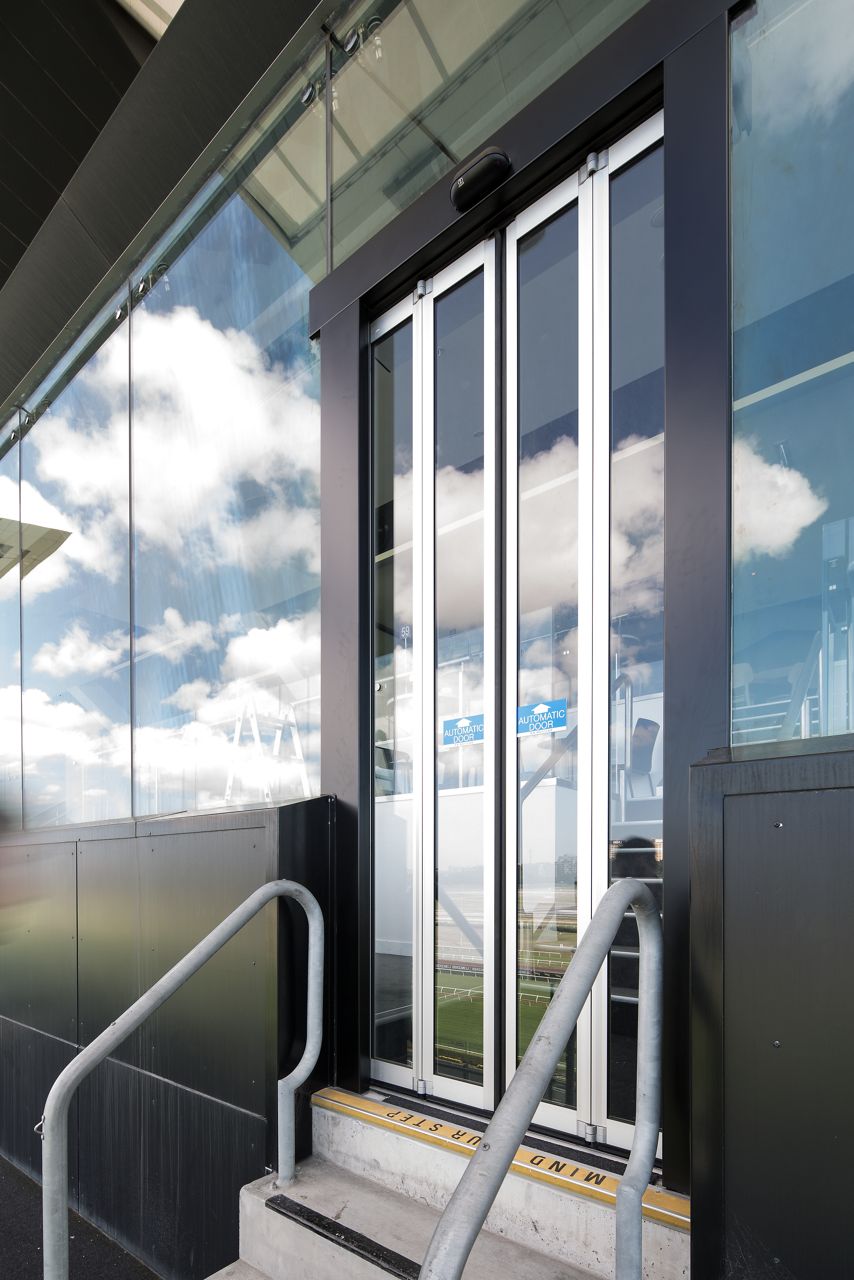

Our folding doors and their variants use another design principle of automatic doors. If there is only limited space for door leaves to open in the passage area, which excludes the use of sliding doors, an automatic folding door provides a good solution.

The width of passage can be almost fully retained. Automatic folding doors can be retrofitted relatively easily; they are designed to work particularly well when fitted in corridors. Depending on the total width available, the folding door is built as one- or two-sided. Typical applications for the Record FTA 20 can be found in gastronomy, in the passage to the pantry, for example, or from the kitchen to the dining area, but a recent trend is to use the door to implement no smoking laws by separating non smokers from newly set up “smoking lounges”.

Applications:

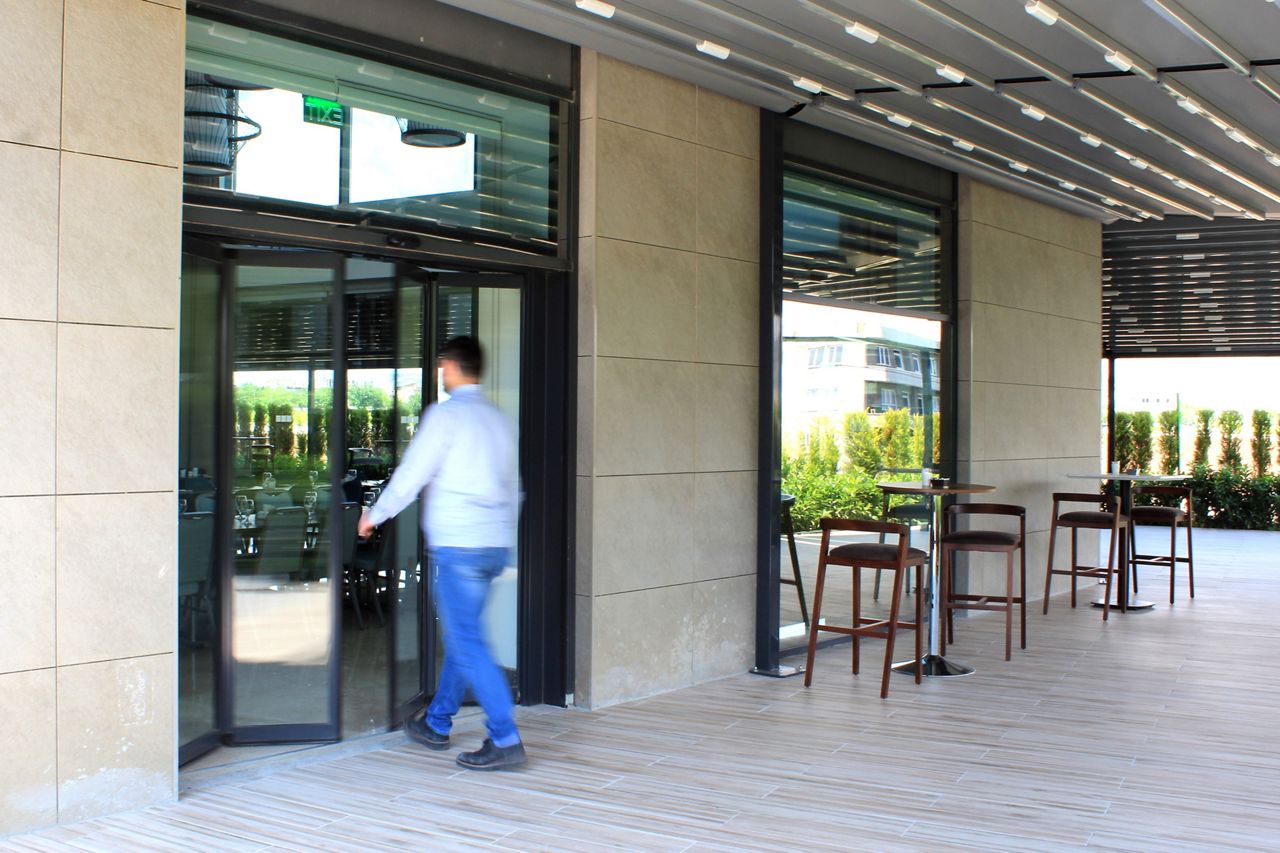

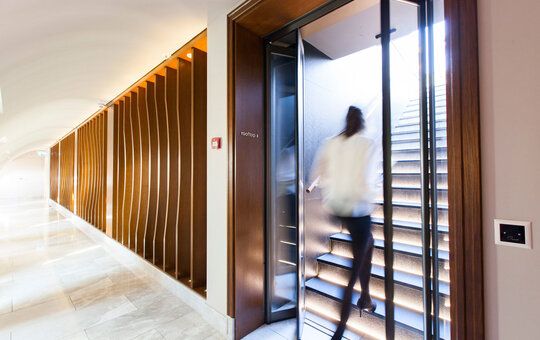

The Record folding door is ideal for narrow passageways in restaurants, hotels, business headquarters, hospitals and old people’s homes.

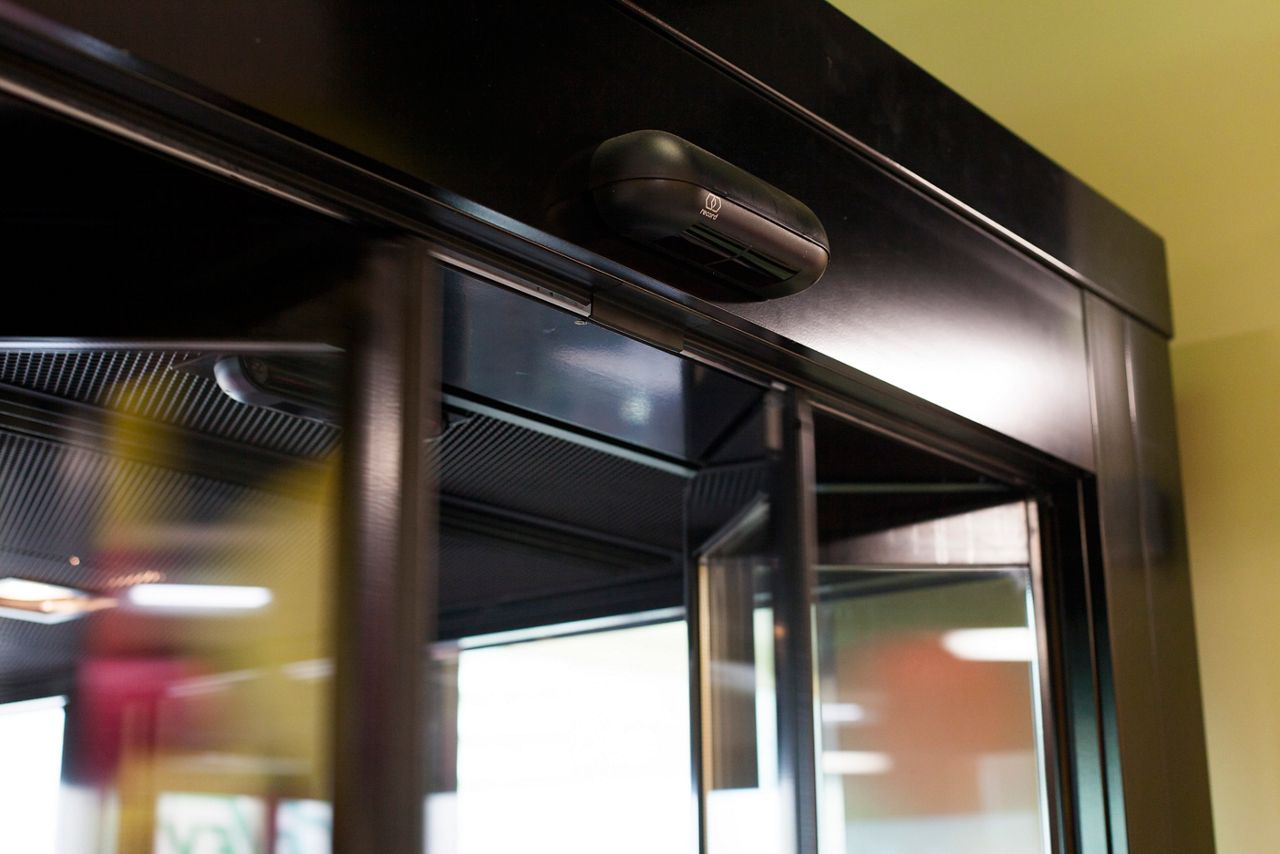

Drive Dimensions

Height: 180 mm
Depth: 240 mm

Adjustable parameters

Open time: 0 – 20 s
Opening speed: 0.03 – 0.7
Closing speed: 0.03 – 0.5

General technical specifications

Width of passage A: 800 – 2000 mm
Height of passage G: recommended maximum value 2500 mm
Door leaf weight: 2 x 37.5 or 4 x 37.5 kg
Rated power: 90 W

Operating conditions

Ambient temperature: − 15 °C to + 50 °C
Humidity range: Up to 85% relative humidity, non-condensing

Compatible products

i-Record
With i-Record, setup and service are faster and easier—right from your phone. Bluetooth^® connectivity and a user-friendly app put smarter door management in your hands.
Record Key-Operated Contact (SSK)
A Record SSK perfectly integrates the convenience of an automatic door system with an enhanced level of burglar protection.
Record Manual Unlocking (HEI/HEA)
mechanical unlocking using a robust Bowden cable for emergency cases
Record AIR 290 Sensor
This sensor is particularly suitable when only a small field of detection needs to be covered.
Record BDE-D Control Unit
The BDE-D electronic control unit is a convenient input and output unit for the control and programming of control units in Record door openers
Record BLS 60 Touchless Switch
Touchless switch for hygienically sensitive areas
Record BLS 80 Touchless Switch
Record BLS 80, touchless switch for automated doors, for sensitive areas and convenient use
Record Opening Switch
A simple push-button switch for automatic doors, available in surface-mounted or flush-fitting versions for flexible installation.
Record RIC 290 Trigger Device
The Record RIC 290 sensor device uses microwave and active infrared technology. It is equipped with both a combination of motion and presence detectors.
Record Touchless Switch
The contactless IR hygienic button triggers an opening impulse without having to touch its surface.
