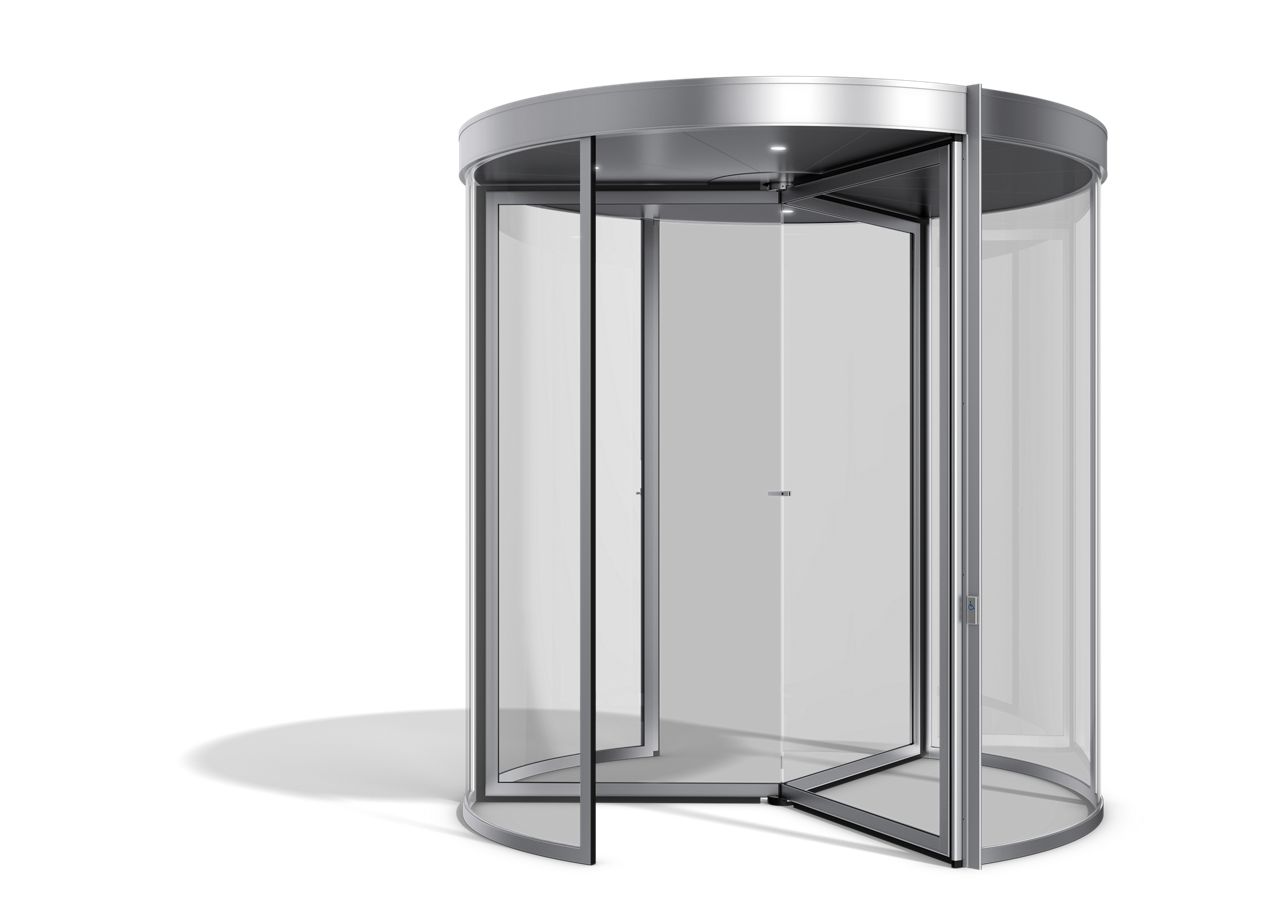

Record K200 Revolving Door

  • Transportation
  • Retail
  • Healthcare
  • Hospitality
  • Three Wing
  • Four Wing
  • Broad Passages

The Record K200 automatic revolving door offers a customizable, secure, and energy-efficient entrance solution for every aesthetic and building. Activated by motion detectors, it flawlessly accommodates every pedestrian and visitor, including those with luggage and wheelchairs. With adjustable diameters, robust design, and optional RC2/RC3 security, the K200 ensures smooth access, safety, and low maintenance.

You can personalize the look and feel with optional air curtains, IoT connectivity, and the ability to choose between multiple finishes or materials.

Talk to an expert View our service agreements

1 of 2

  • Pedestrian – Groups (mm): ≥2700
  • High Traffic including Trolleys & Wheelchairs: ≥3600
  • Max. Capacity per minute per direction: 22-89
  • Diameter (increment of 100mm): 1800–4000
  • Internal passage height (mm): 2000–3500
    *depending on configuration
  • Canopy height (mm): 200–1250
  • Power supply: 100-240 VAC+10/-15%, 50/60 Hz, mains fuse max. 16 A (building installation
  • Power consumption: 200 W / 30 W resting
  • Lighting LED: 7 W
  • Brochure

  • Brochure_Record_Revolving_doors_en_web(PDF, 2 MB)
  • Product datasheet

  • Datasheet_Record_K200_en(PDF, 573 KB)
  • User manual

  • User manual Revolving doors Record K200-3-5 / K200-4-5(PDF, 2 MB)
  • BIM objects

  • Record_K200 BIM(RFA, 13 MB)
