Features

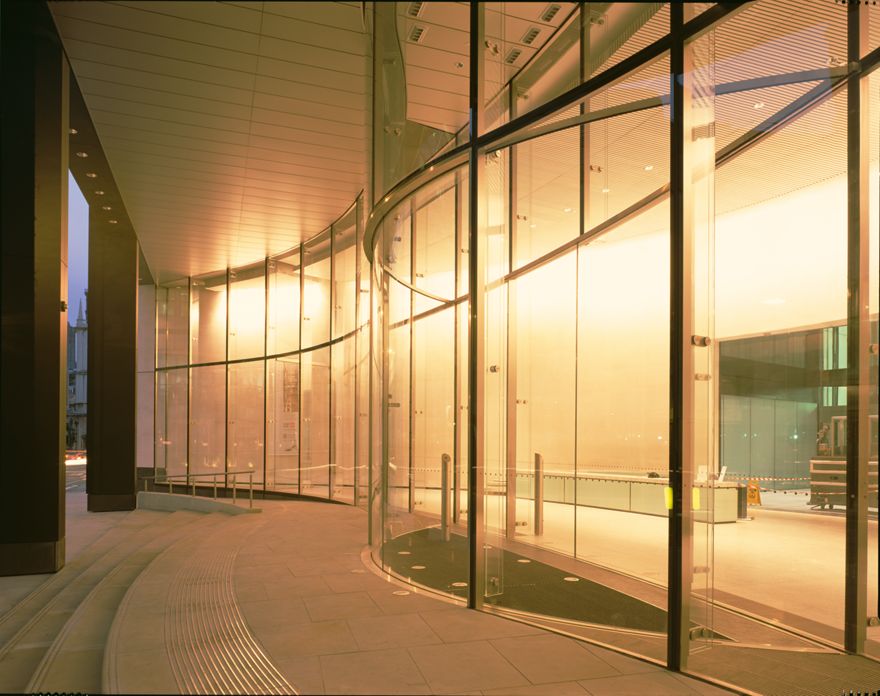

With the radial and linear under floor version, the entire door leaf weight rests on the drive module base alone. The upper guide rail is designed merely to absorb horizontal forces caused by wind forces, and a minimum height of 55 mm is provided for this. The maximum height of door systems is currently 5000 mm.
Optionally, doors can also be controlled by motion sensors embedded in the floor. Even with peripheral devices, the idea of the invisible drive is still a top priority at record.
D-STA
Adjustable parameters
- Open time: 0 to 60 sek.
- Opening speed: up to 0.7
- Closing speed: up to 0.7
General specifications
- Width of passage A: 4 000 mm
- Height of passage G: 5 000 mm
- Door leaf weight: 2 x 200 kg
- Power supply voltage: 230 V AC 50 / 60 Hz
- Rated power: 250 W
- Consumption in standby mode: 15 W
Operating conditions
- Ambient temperature: –15° to +50°C
- Humidity range: Up to 85 % relative humidity, non-wetting
- Wind load: Wind load design depends on a range of parameters
- Type of protection: IP 54
E-STA
Adjustable parameters
- Open time: 0 to 60 sek.
- Opening speed: up to 0.7
- Closing speed: up to 0.7
General specifications
- Width of passage A: 4 000 mm
- Height of passage G: 5 000 mm
- Door leaf weight: 2 x 200 kg
- Power supply voltage: 230 V AC 50 / 60 Hz
- Rated power: 250 W
- Consumption in standby mode: 15 W
Operating conditions
- Ambient temperature: –15° to +50°C
- Humidity range: Up to 85 % relative humidity, non-wetting
- Wind load: Wind load design depends on a range of parameters
- Type of protection: IP 54
