i-Record
With i-Record, setup and service are faster and easier—right from your phone. Bluetooth® connectivity and a user-friendly app put smarter door management in your hands.

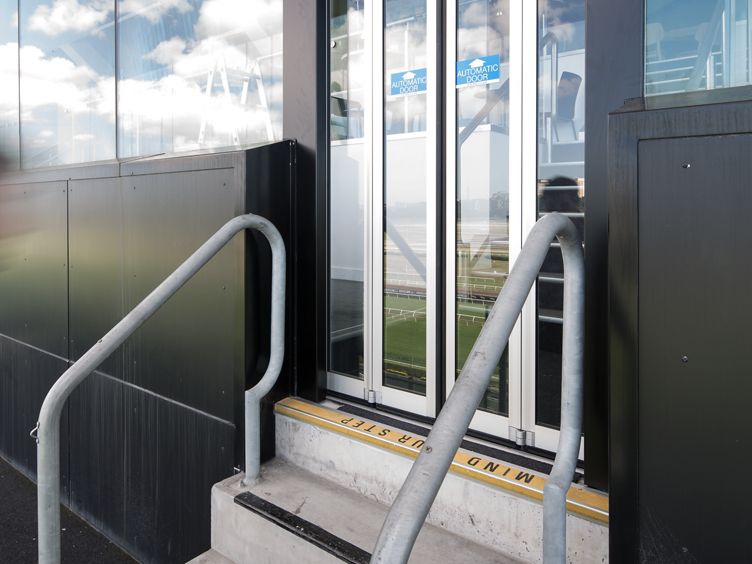

The width of passage can be almost fully retained. Automatic folding doors can be retrofitted relatively easily; they are designed to work particularly well when fitted in corridors. Depending on the total width available, the folding door is built as one- or two-sided. Typical applications for the Record FTA 20 can be found in gastronomy, in the passage to the pantry, for example, or from the kitchen to the dining area, but a recent trend is to use the door to implement no smoking laws by separating non smokers from newly set up “smoking lounges”.
Applications:
The Record folding door is ideal for narrow passageways in restaurants, hotels, business headquarters, hospitals and old people’s homes.
Drive Dimensions
- Height: 180 mm
- Depth: 240 mm
Adjustable parameters
- Open time: 0 – 20 s
- Opening speed: 0.03 – 0.7
- Closing speed: 0.03 – 0.5
General technical specifications
- Width of passage A: 800 – 2000 mm
- Height of passage G: recommended maximum value 2500 mm
- Door leaf weight: 2 x 37.5 or 4 x 37.5 kg
- Rated power: 90 W
Operating conditions
- Ambient temperature: − 15 °C to + 50 °C
- Humidity range: Up to 85% relative humidity, non-condensing
Product factsheet
Product leaflets
Product drawings
Compatible products
Record AIR 290 Sensor
This sensor is particularly suitable when only a small field of detection needs to be covered.Record BDE-D Control Unit
The BDE-D electronic control unit is a convenient input and output unit for the control and programming of control units in Record door openersRecord RIC 290 Trigger Device
The Record RIC 290 sensor device uses microwave and active infrared technology. It is equipped with both a combination of motion and presence detectors.
