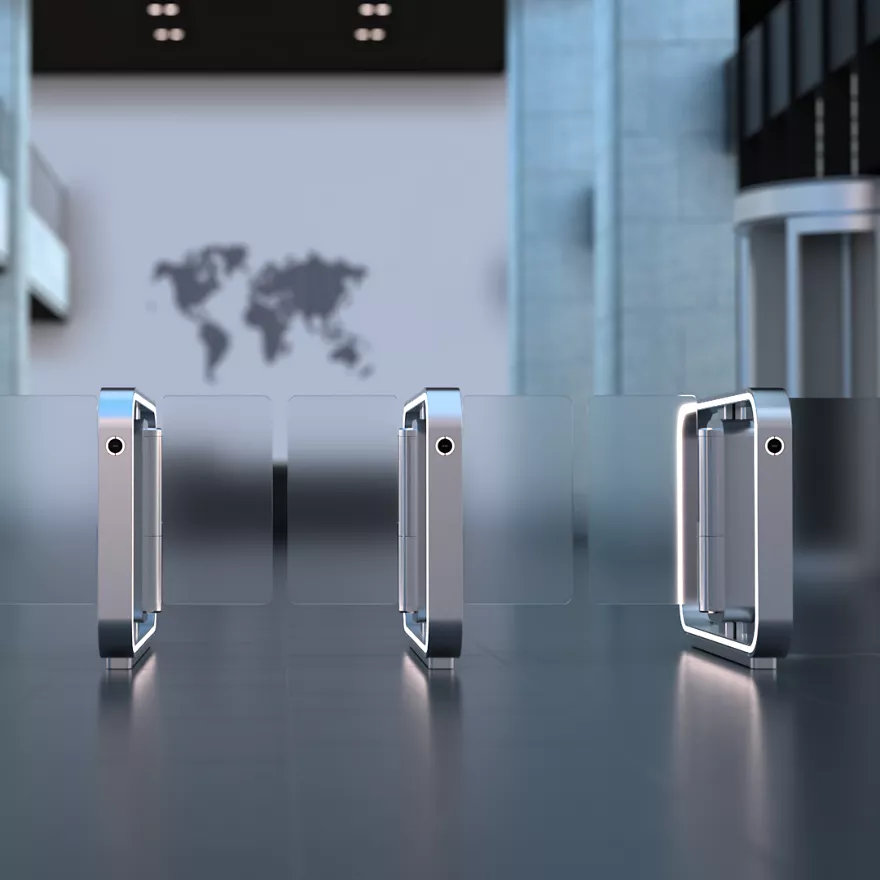

Impression Speedgate
Impress your visitors with flexible, elegant and sophisticated speedgates that not only look the part, but feature a modular design ensuring it can be installed in almost any entrance.
By housing the electronics in the center of the gate barrier, their length and width can be fully customized to suit your needs, eliminating the need to compromise on your architectural design.
The Impression Speedgate is a simple to install solution with state of the art security features, designed to prevent unauthorized access even in areas with a high volume of pedestrian traffic.
Shape positive impressions in your highest traffic areas
Shape positive impressions in your highest traffic areas
Impression's Center Glass Cabinet Option
Impressions's Boxed Cabinet Option
Impression's Open Cabinet Option
Record Impression Features
LED Pictogram signals passage status from afar
Light bands for immediate user feedback
Surface and Inlay available in RAL colors to match your environment

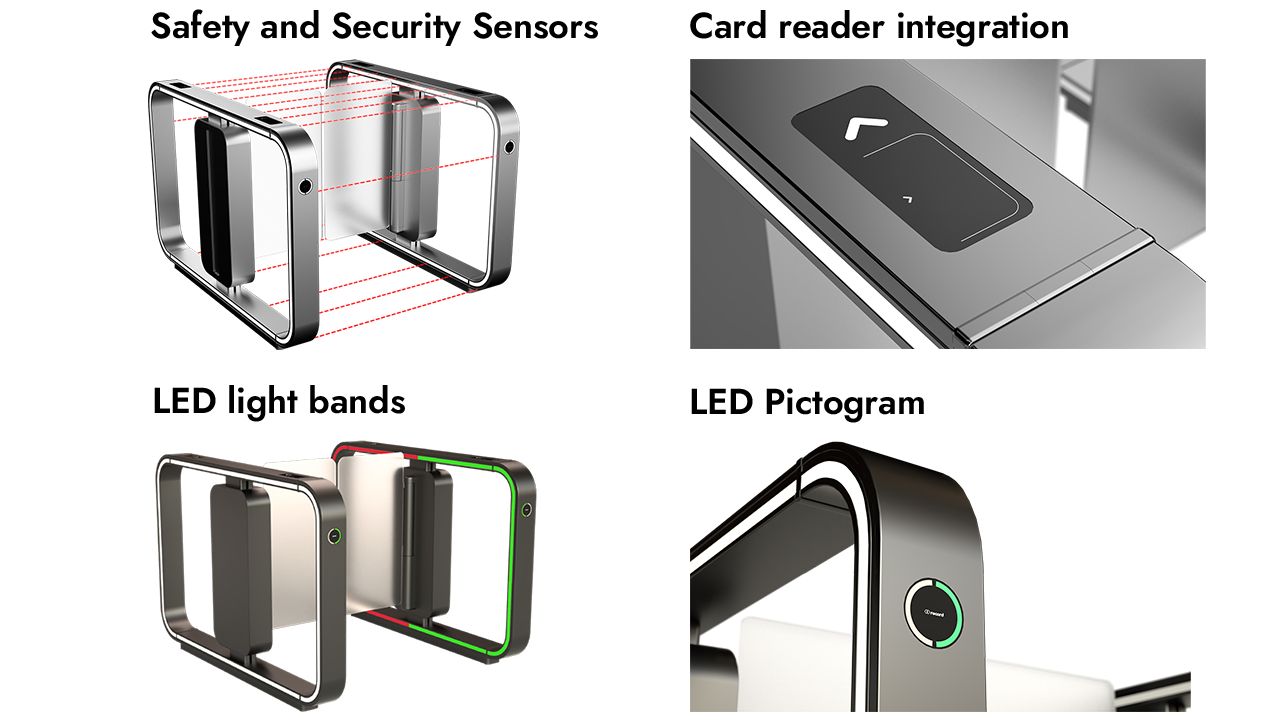

Record Impression Features
Safety and Security Sensors: Working constantly to make sure all jumpover and tailgating attempts are unsuccessful.
Card Reader Integration: Speed up your people flow with our latest card reader technology working in your favor.
LED Light Bands: Designed to delight and direct your people flow with its intuitive and guiding lighting concept.
LED Pictogram: Find out the passageway status of your speedgate from afar.
- Power supply: 110-240 VAC, 50/60 Hz
- Auxilliary voltage: 24 VDC
- Operating temperature: 32 degrees F to 122 degrees F (+0 C to +50 C)
- Passageway width: 23.62" (600mm) to 43.31" (1100mm)
- Wing heights: 39.37" (1000mm)/47.25" (1200mm)/ 70.86" (1800mm)
- Minimum opening/closing time: 0.7 sec (depending on passageway width)
- Noise level: 55 dB at 1m distance
- IP Protection: IP40 (conforming with EU standards)
Product Brochure
Drawings (pdf)
Drawings (dwg)
BIM Objects
