Record STA 20 Sliding Door
Classic linear sliding door record STA 20 – the allrounder

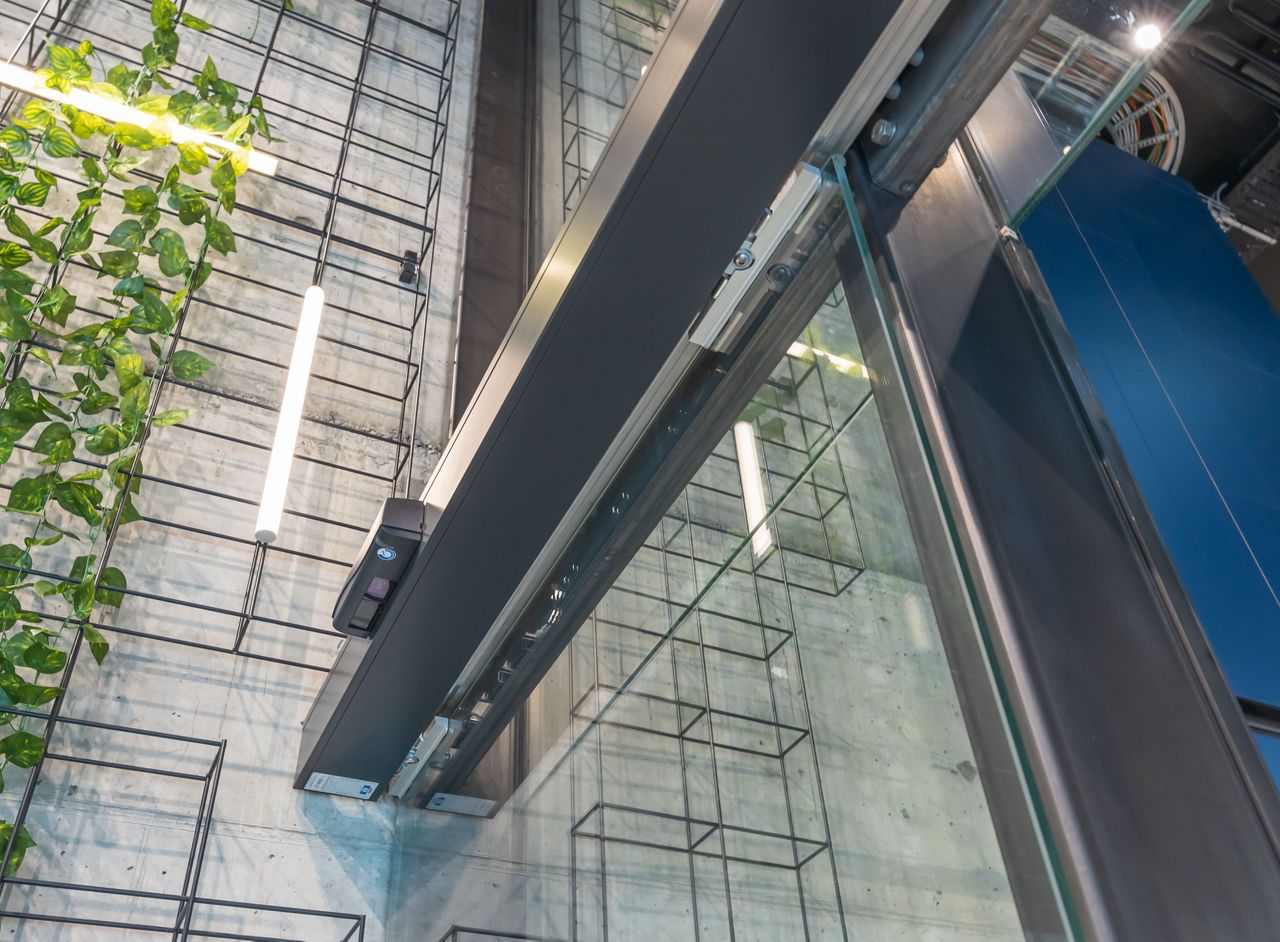

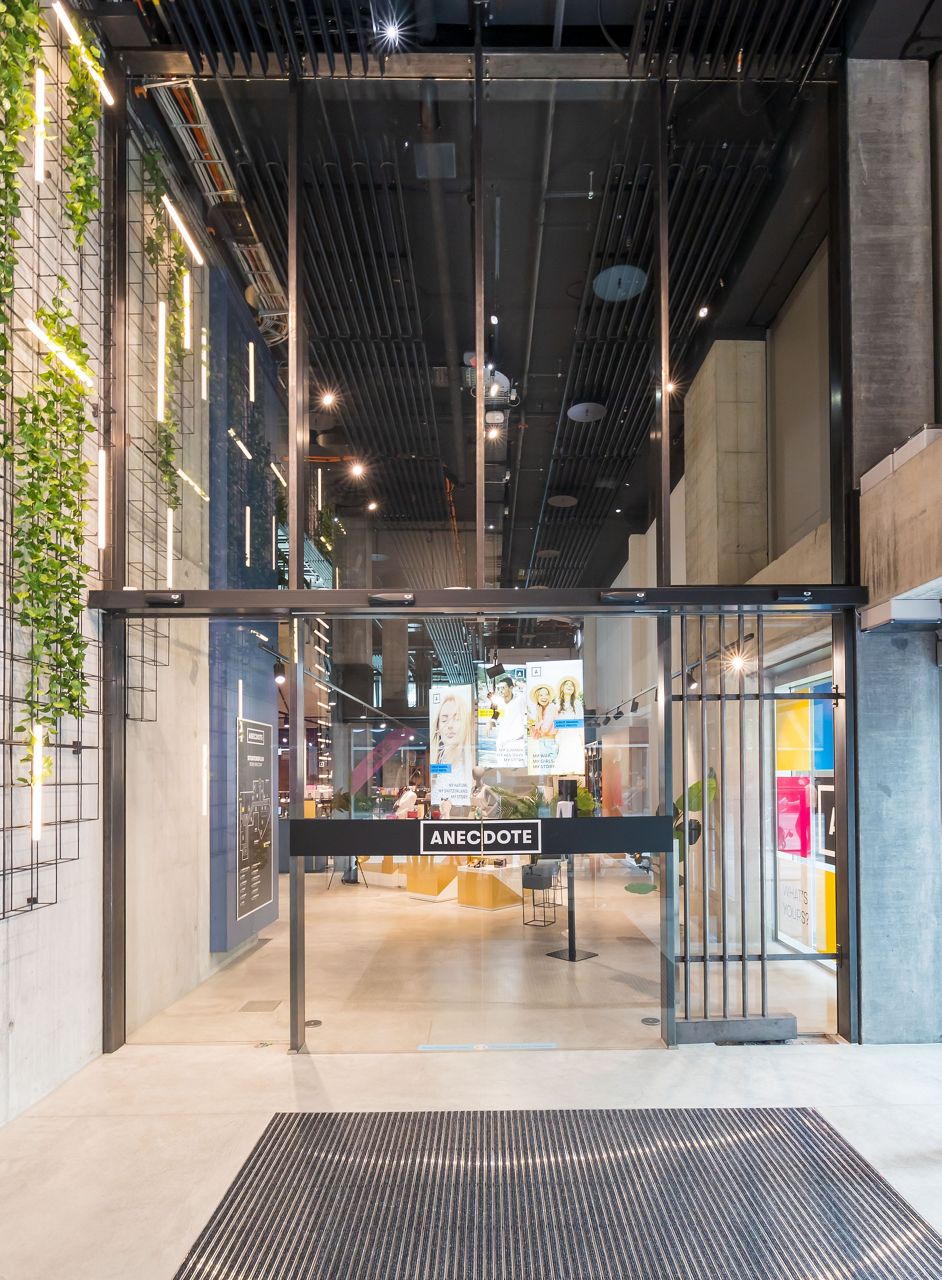

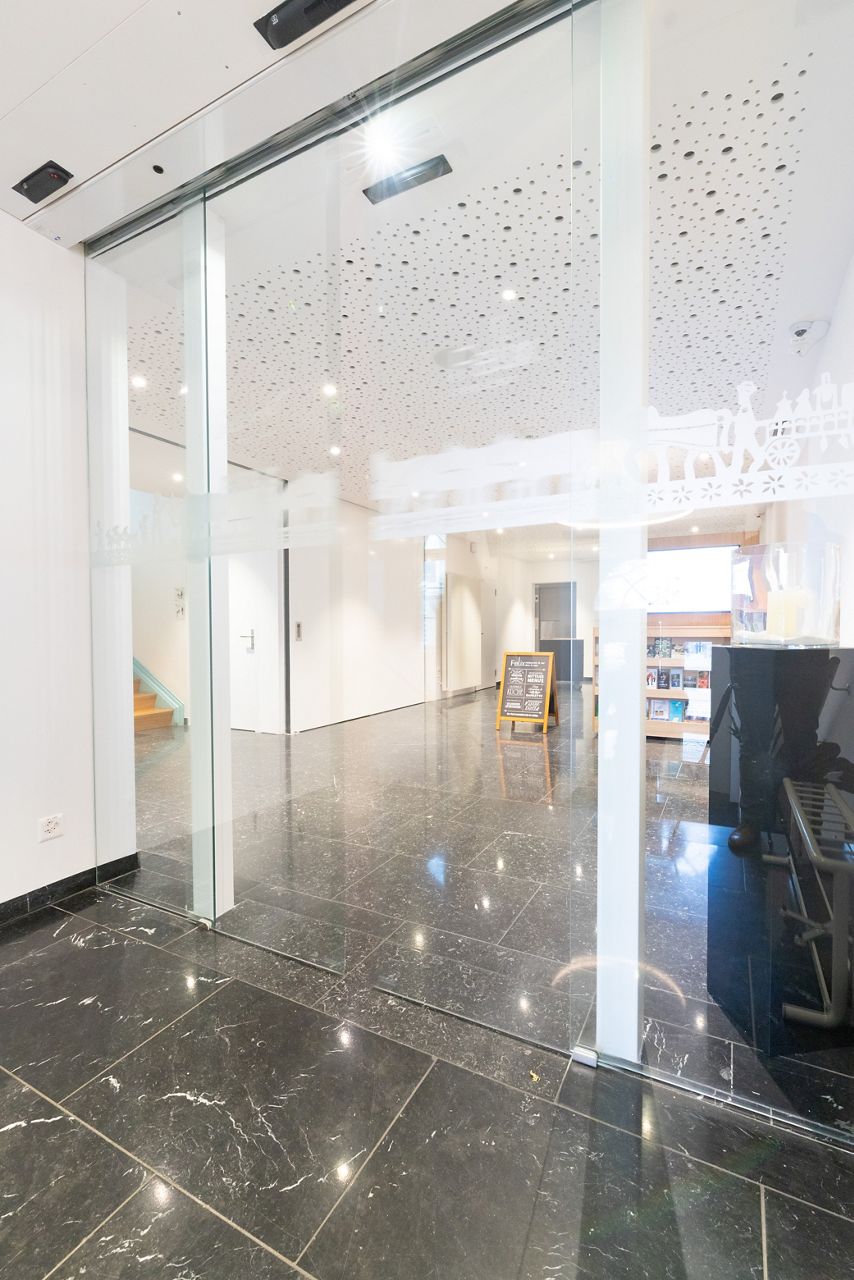

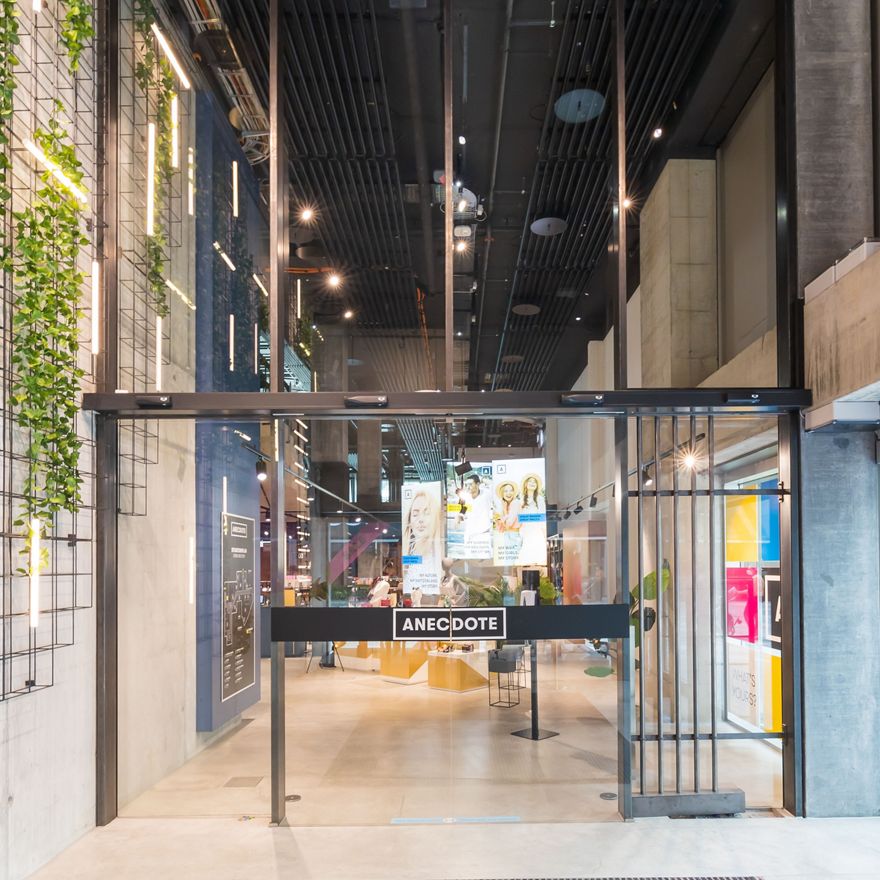

Record STA 20 Frameless Sliding Door
Record D-STA 20 Frameless
Drive Dimensions
- Without side piece (depth x height): 157 x 108 mm mm
- With side piece (depth x height): 194 x 108 mm mm
Adjustable parameters
- Door movement: 0.7 m in 1.5 s
General technical specifications
- Width of passage A: 800 – 3 000 mm mm
- Height of passage G: 3 000 mm mm
- Support beam length F: 2 A + 100 mm mm
- Total height J: G + 108 mm mm
- Door leaf weight: 2 x 90 kg kg
- Power supply voltage: 100 – 240 V AC, 50 / 60 Hz
- Rated power: 90 W W
- Power consumption: Ca. 25 W
Operating conditions
- Ambient temperature: – 15 ° to + 50 ° C
- Humidity range: up to 85 % rel. humidity, no condensation
Record E-STA 20 Frameless
Drive Dimensions
- Without side piece (depth x height): 157 x 108 mm mm
- With side piece (depth x height): 194 x 108 mm mm
Adjustable parameters
- Door movement: 0.7 m in 1.5 s
General technical specifications
- Width of passage A: 800 – 2 500 mm mm
- Height of passage G: 3 000 mm mm
- Support beam length F: 2 A + 50 mm mm
- Total height J: G + 108 mm mm
- Door leaf weight: 1 x 90 kg kg
- Power supply voltage: 100 – 240 V AC, 50 / 60 Hz
- Rated power: 90 W W
- Power consumption: Approx. 25 W
Operating conditions
- Ambient temperature: – 15 ° to + 50 ° C
- Humidity range: up to 85 % rel. humidity, no condensation
