Record 180/360 Curved Standard Sliding Door

  • Transportation
  • Retail
  • Hospitality
  • Escape Routes
  • Energy Saving
  • Security Applications
  • Waterproof

The Record CURVED 180/360 Automatic Sliding Door delivers a visually stunning and space-efficient entrance solution. Whether installed as a 180-degree curved door or a full 360-degree curved sliding door, it creates a striking architectural feature that enhances the flow and openness of any building.

Offering the elegance of a revolving door without the complexity, this automatic curved sliding door is exceptionally flexible and versatile. Its curved design allows more natural light to enter the space, creating a bright, welcoming, and spacious atmosphere that elevates the overall aesthetic of your entrance.

Perfectly suited for commercial buildings, airports, hospitals, hotels, banks, insurance offices, shopping centres, luxury retail stores, and leisure complexes, the Record CURVED 180/360 is designed to perform in high-traffic environments while maintaining a sleek, modern appearance.

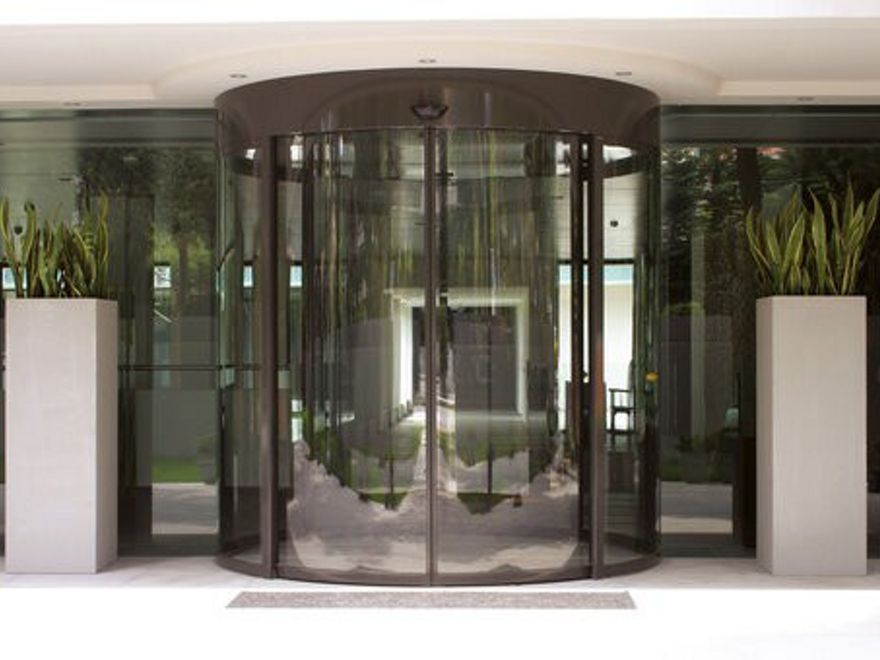

Record 180/360 Curved Standard Sliding Door

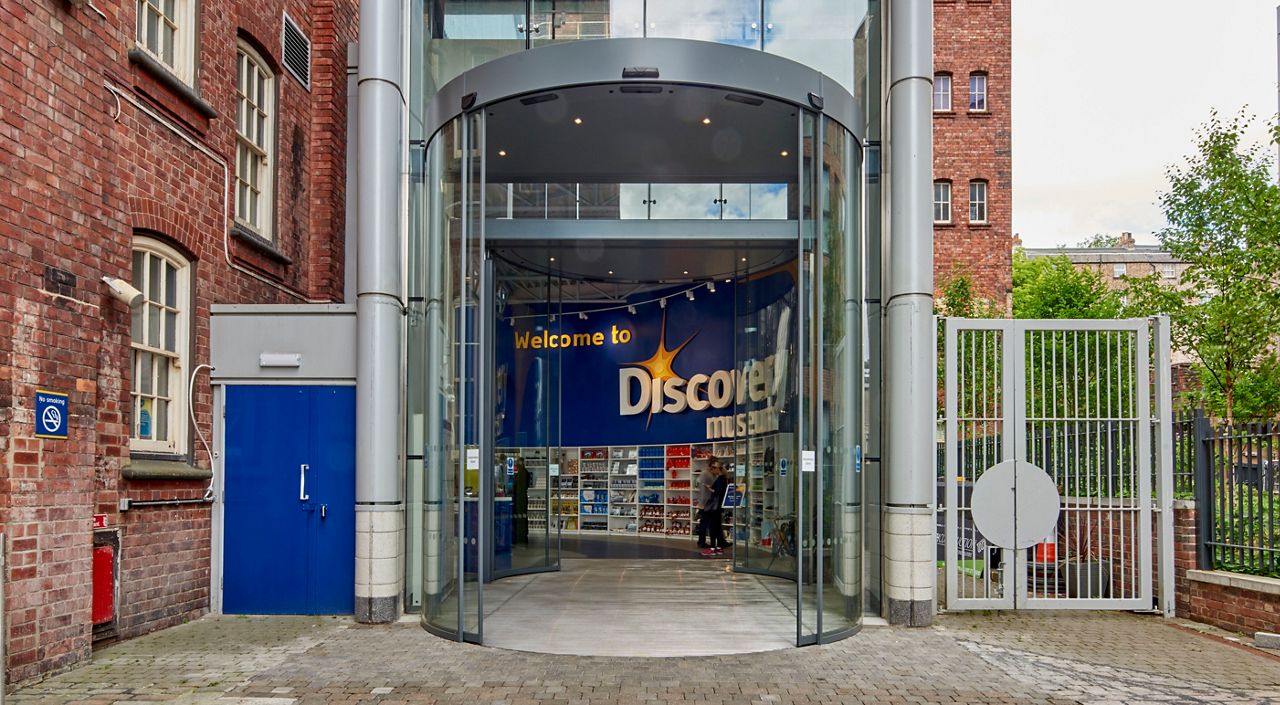

Record 180/360 Curved Standard Sliding Door

1 of 3

D-STA

Drive Dimensions

  • Height: 200 / 220 mm

General specifications

  • Width of passage A: 800 – 3 000 mm
  • Height of passage G: recommended maximum value: 3 000 mm
  • Door leaf weight: 2 x 100 kg
  • Door leaf weight DUO/RED: 2 x 200 kg

E-STA

Drive Dimensions

  • Height: 200 / 220 mm

General technical specifications

  • Width of passage A: 800 – 3 000 mm
  • Height of passage G: recommended maximum value: 3 000 mm
  • Door leaf weight: 1 x 200 kg
  • Door leaf weight DUO/RED: 1 x 250 kg
  • Datasheet

  • Record Curved Datasheet(PDF, 423 KB)
  • Product drawings

  • Curved 180° - profile 30 - execution drawing(PDF, 848 KB)
  • Curved 360° - profile 30 - execution drawing(DWG, 1 MB)
  • Curved 360° - profile 30 - execution drawing(PDF, 978 KB)
  • Curved 180° - profile 30 - execution drawing(DWG, 1 MB)
  • Curved 360° - profile 20 - execution drawing(PDF, 914 KB)
  • Curved 180° - profile 20 - execution drawing(PDF, 795 KB)
  • Curved 180° - profile 20 - execution drawing(DWG, 1 MB)
  • CURVED 180 360 RC3 drawing + wall connection for 360 drawing(PDF, 4 MB)
  • Curved 360° - profile 20 - execution drawing(DWG, 1 MB)
  • CURVED 180 360 RC2 drawing + wall connection for 360 drawing(PDF, 1 MB)
  • BIM objects

  • BIM - Radial Sliding Door record CURVED (RST)(RFA, 2 MB)
  • BIM Revit 2020 for record Curved RST non hosted(RFA, 8 MB)
  • BIM Revit 2020 for record Curved RST curtain wall hosted(RFA, 8 MB)
  • Radial Sliding Door record CURVED (RST) – curtain wall panel BIM(RFA, 3 MB)
  • Radial Sliding Door record CURVED (RST) – wall based BIM(RFA, 6 MB)
  • BIM Revit 2020 for record Curved RST(RFA, 8 MB)
