One-Hour Install
This operator can be installed in about an hour.
HA7
Aesthetics and innovation combine in the HA7. The slim header blends seamlessly with most standard door frames, and fits into areas where standard operators could not. Its quick installation and mobile app set-up make it an ideal choice for offices, restrooms and assisted living facilities.

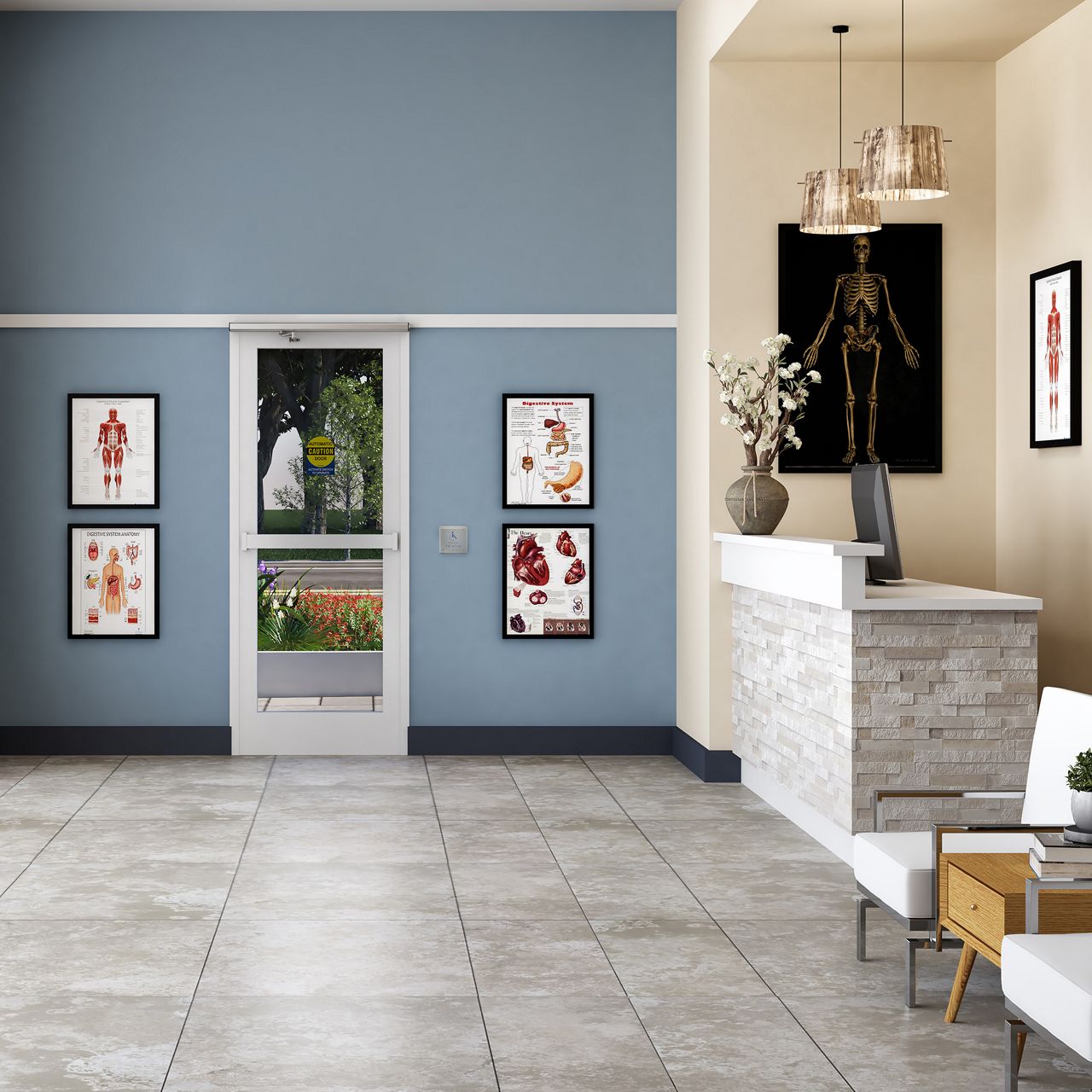

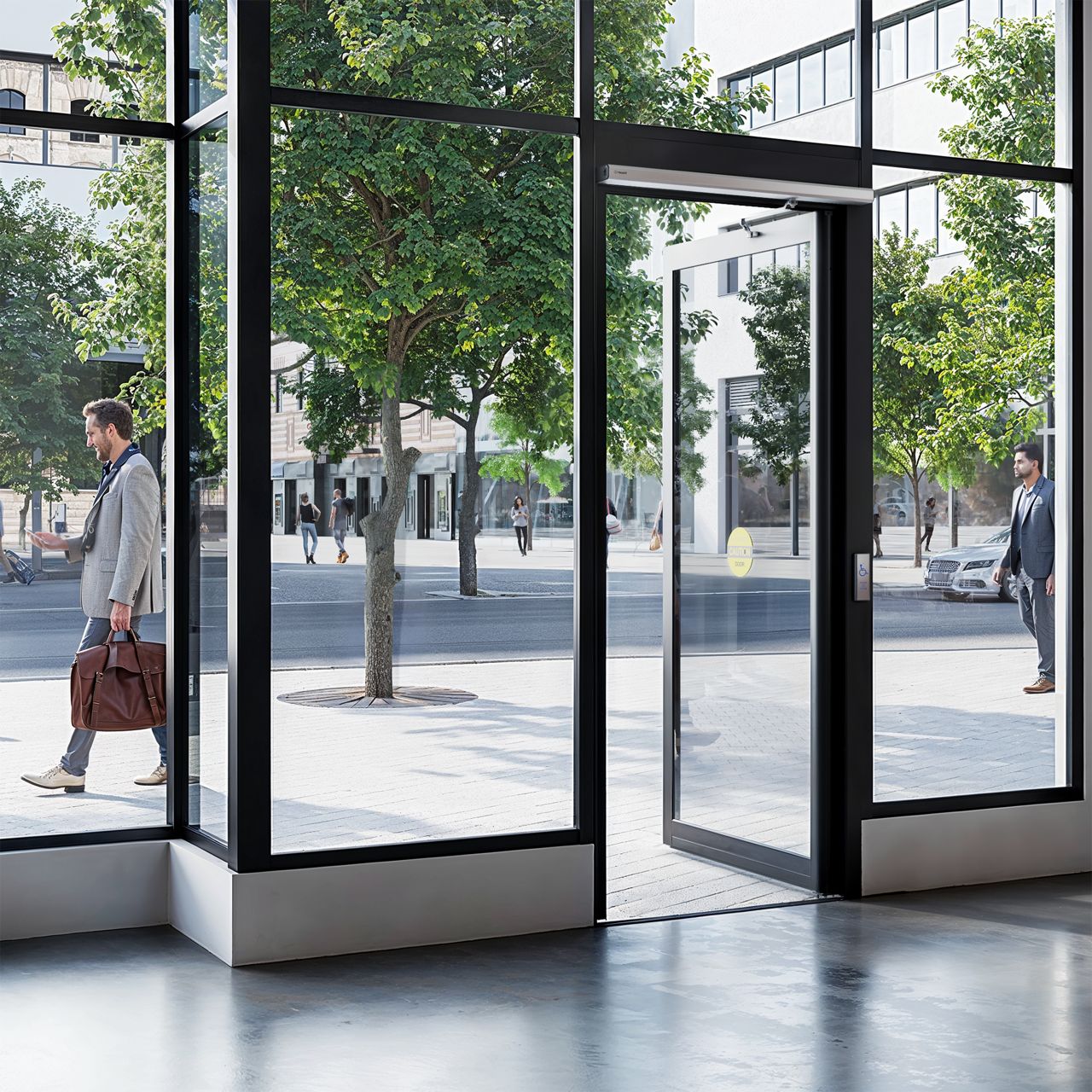

The redesigned HA7 features an onboard power supply, ensuring seamless integration and a cord-free installation, integrated door stops, and is now recommended for both interior and exterior applications (when exposed to low/mild wind conditions or stack pressure).
Aesthetics
- Slim header design blends seamlessly with door frame
- Perfect for retrofit applications
Convenience
- Quick Installation
- Easy mobile app set-up
- No electrician required; 120 vac outlet compatible with optional plug-in power kit
Innovative Features
- Partial Open/Parking
- Hold Open
- Privacy Function/Time-Delay Cancellation
- Ratchet (activate one to open; activate again to close)
- Push and Go
- Power Assist
- Set-Up and Control with App
Built In Safety Features
- Stop on Stall
- Reverse on Obstruction
HA7 in clear with a pull arm on an office door
HA7
Low Energy Overview
Take Your Doors from Manual to Modern
App Controlled
Set-up, control, and customize door parameters with the swing door app.
Push & Go
A light manual push acts as an activation switch, and initiates an open cycle.
Power Assist
Provides a lighter feeling when opening a heavy door manually.
- Finish: Clear or Dark Bronze
- Header Profile Dimensions: 1.85" x 3" (on HA7-100 or HA7-200 units) or 1.85" x 3.5" (on HA7-150 or HA7-250 units)

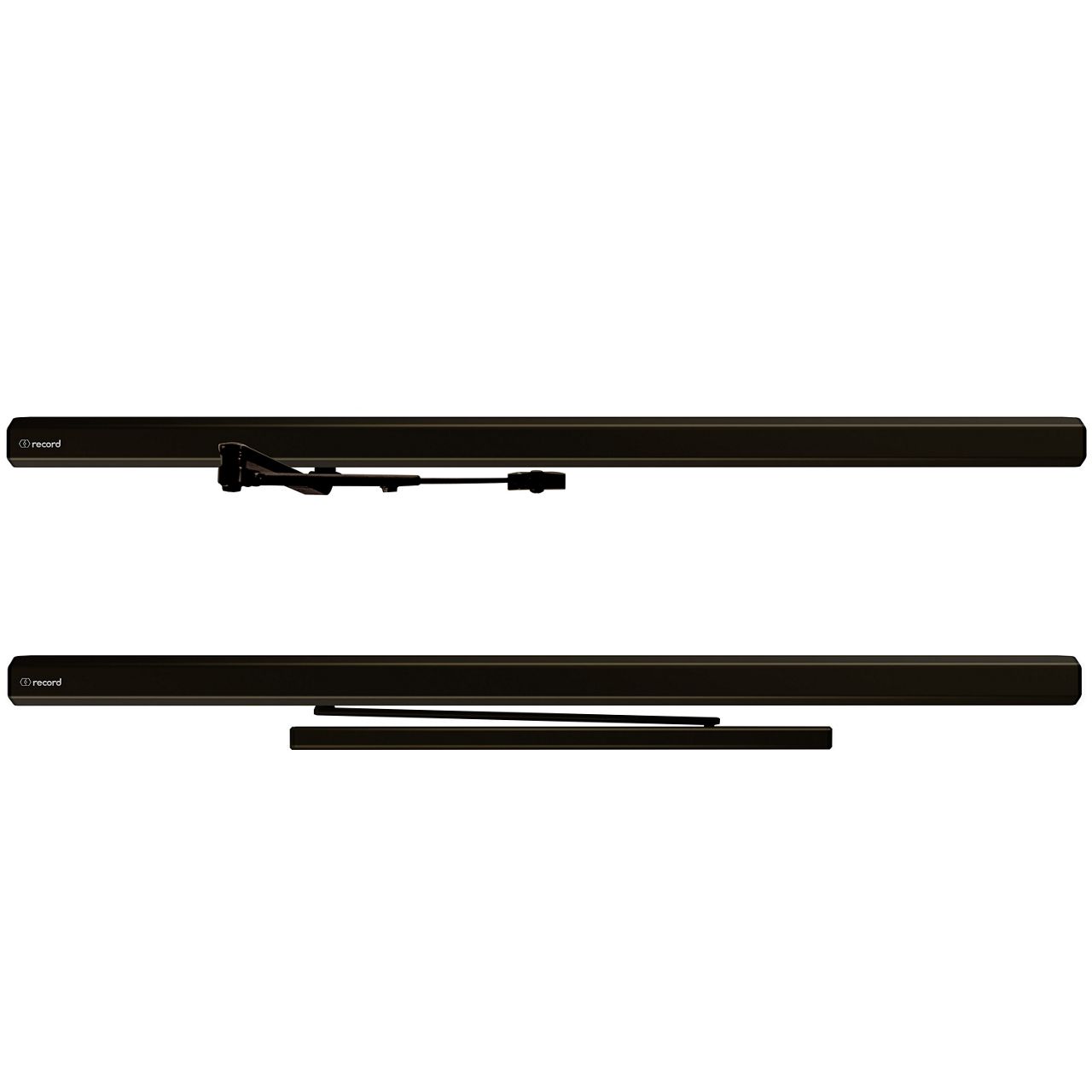

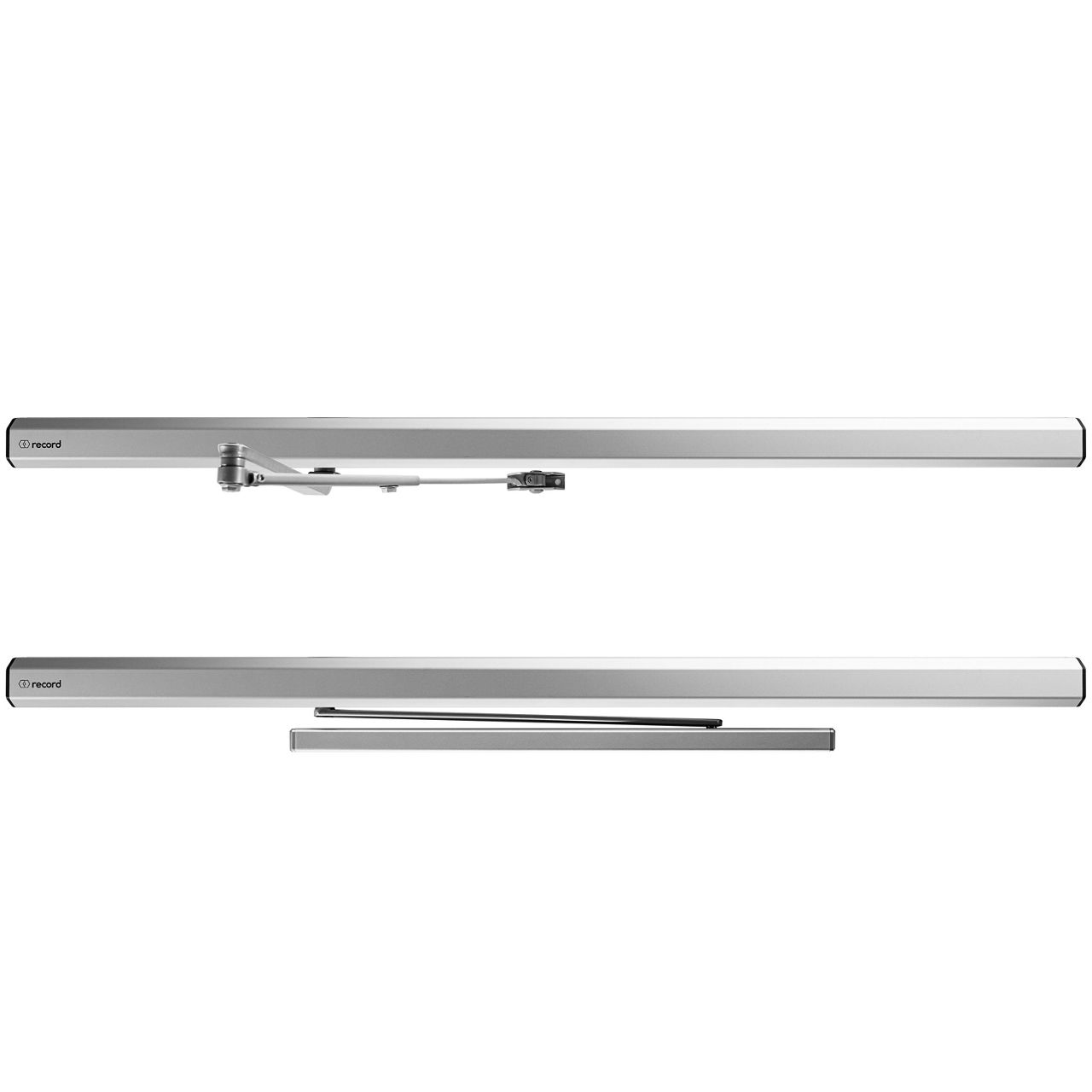

- Arm: Push or Pull (receive both arms with every unit)
- Door Weight (max): 200 lbs.
- Door Width (max): 48"
- Motor Type: Electro Mechanical
- Manual Opening/Closing Force: Adjustable 5 to 30 lbs.
- Operating Voltage: 120 VAC +10/-15%, 50/60 Hz
- Auxiliary Voltage: 24 V DC, max 400 mA
- ANSI/BHMA A156.19 Compliant: Yes
- UL/CUL Listing for UL 325/UL 10C: Yes
Product Brochure
Drawings (pdf)
Drawings (dwg)
BIM Objects
Install Manuals
Replacement Parts
Product Videos
Product Videos
HA7 Features
Installation Videos
Pull Application (for HA7-150 or HA7-250 units)
Push Application (for HA7-150 or HA7-250 units)
Pull Application (for HA7-100 or HA7-200 units)
Push Application (for HA7-100 or HA7-200 units)
Tech Tip Videos
How to Install an Electric Strike
How to Install a Key Fob

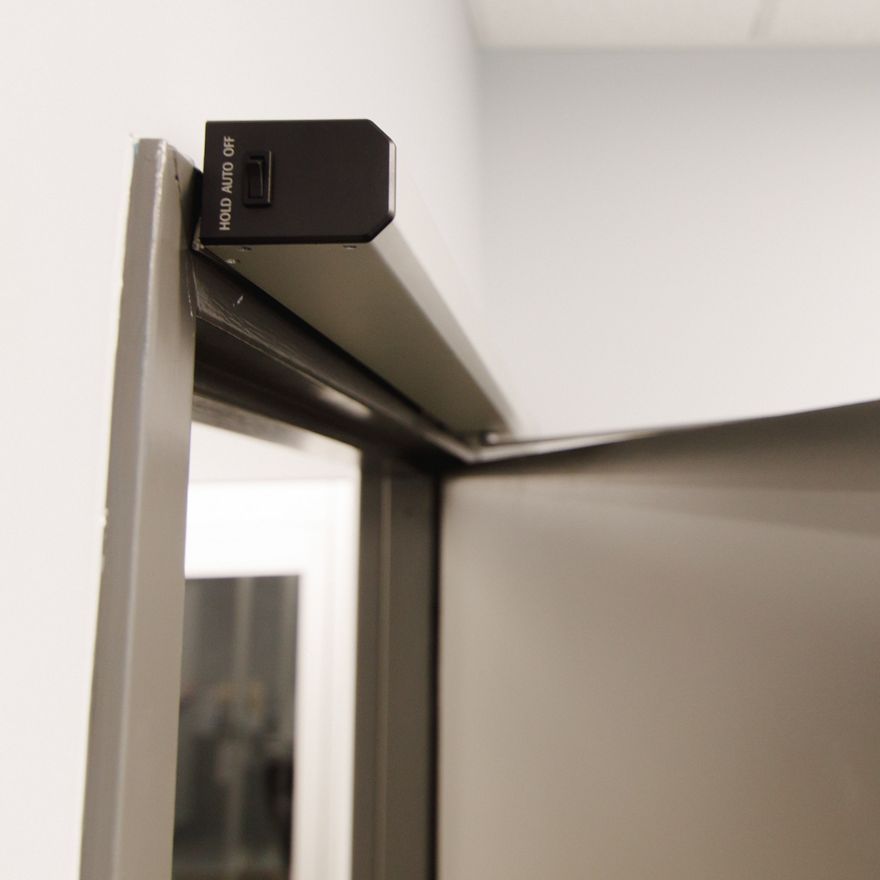

Setting the HA7 Mode Selector
Wiring a Wave to Open
