5400/5500 Windcord

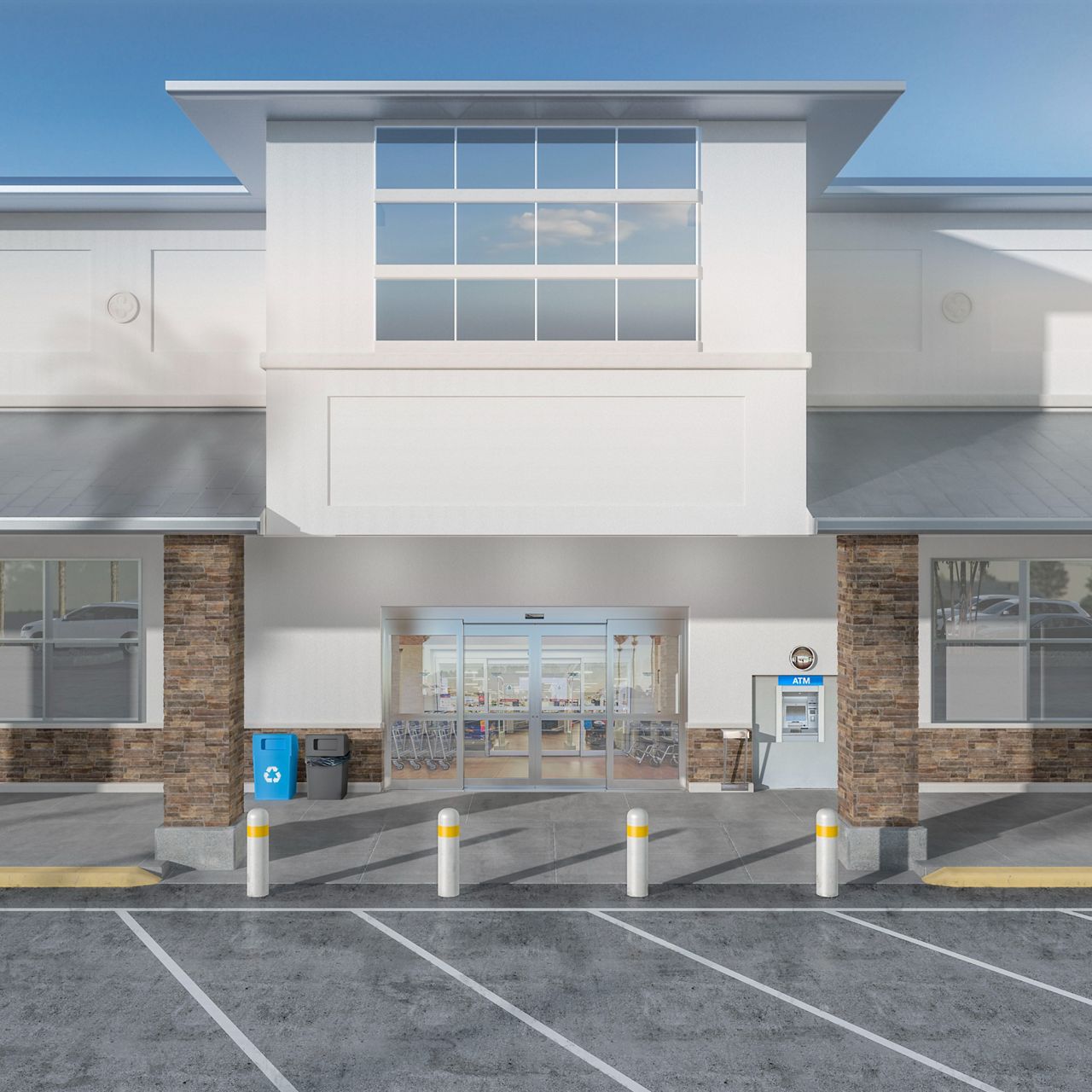

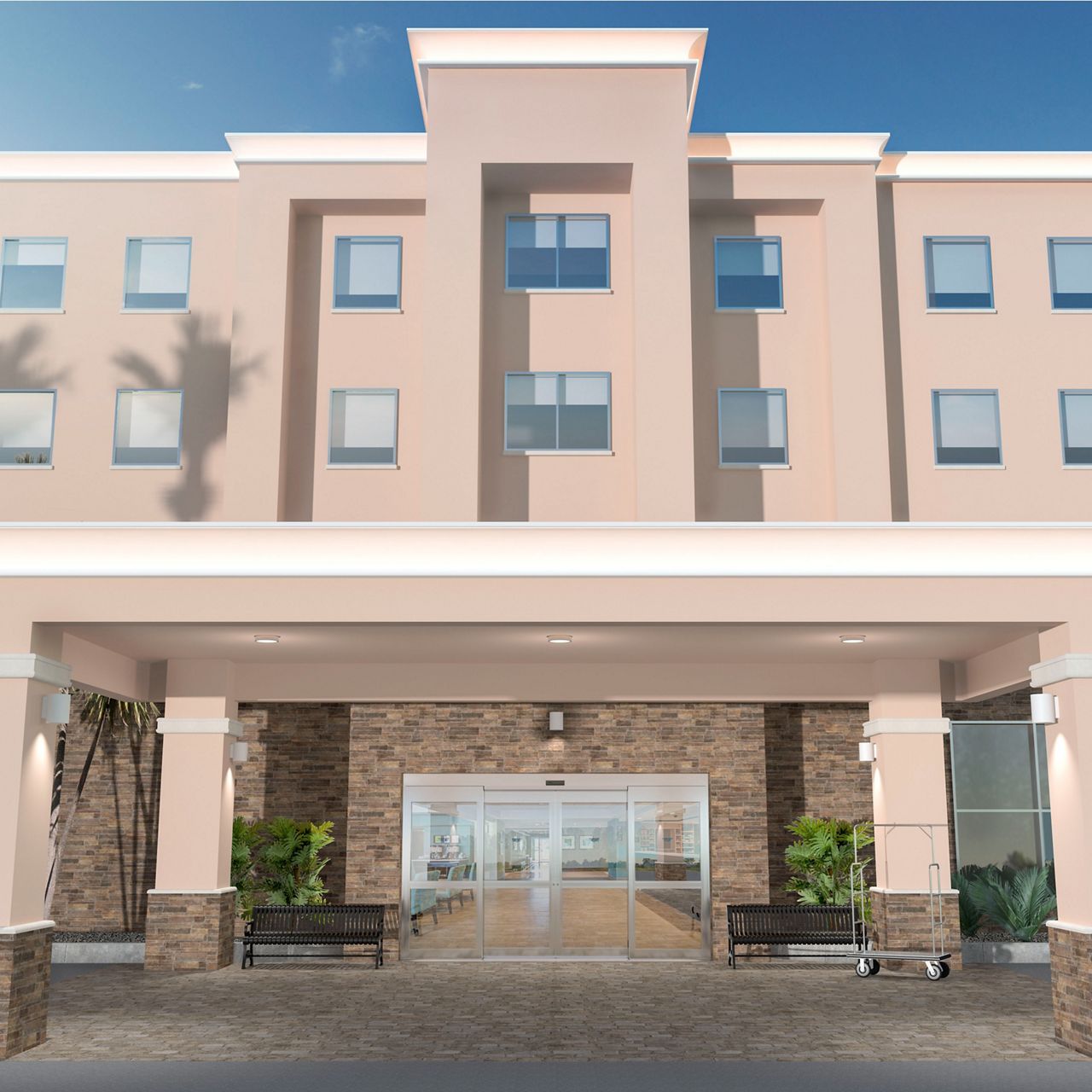

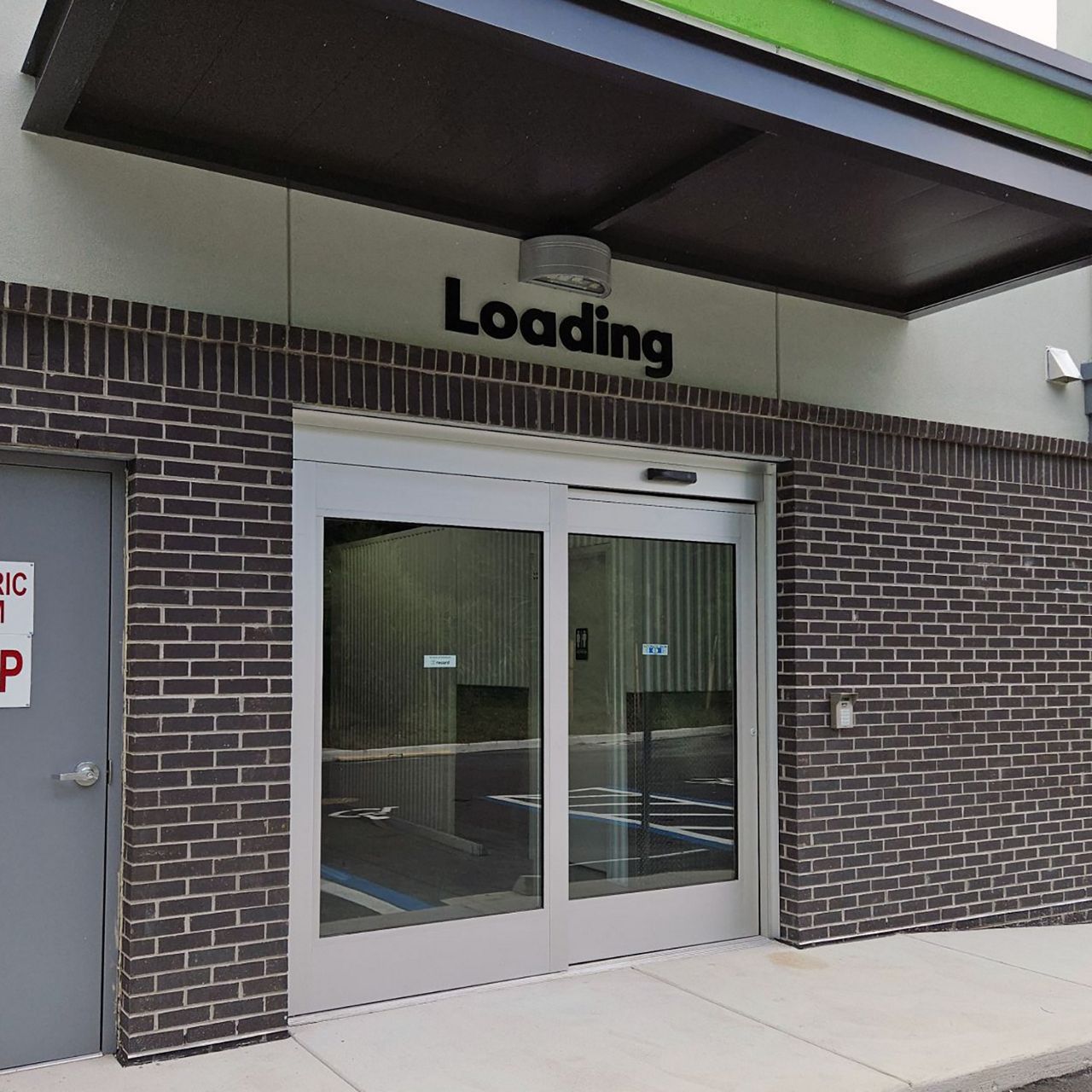

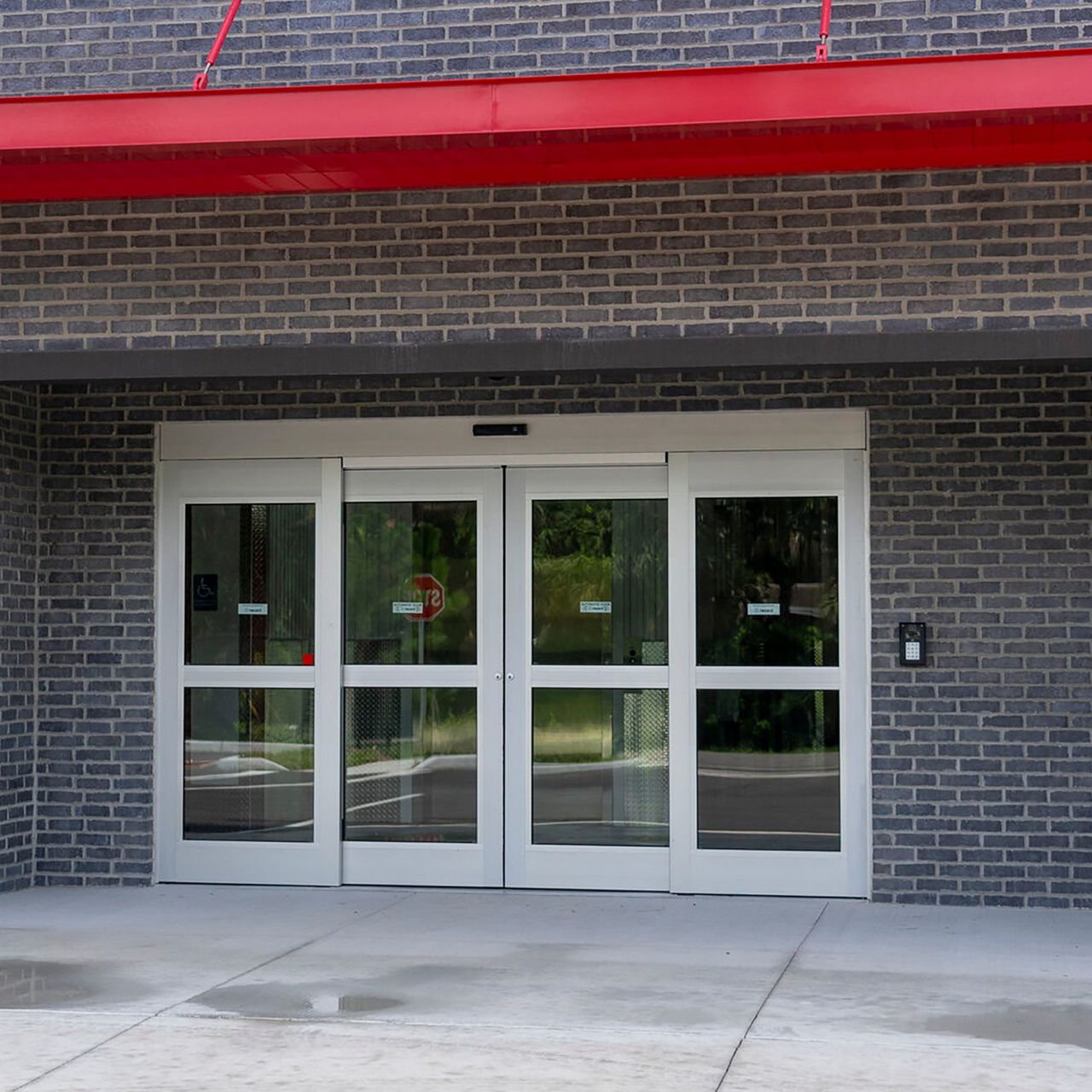

The Record Windcord 5400/5500 hurricane rated sliding door system has undergone meticulous design, construction, and testing to ensure long-lasting performance. It offers unparalleled defense against destructive winds and debris with heavy-duty vertical rails, while offering a modern appearance with its narrow stiles.

Features & Benefits

• Maximum package height 104“
• Package width 80“-108“ (single slide)
• Package width 120“-192“ (bi-part)
• Design pressures +/- 75psf for single slide; +/- 70 for bi-part

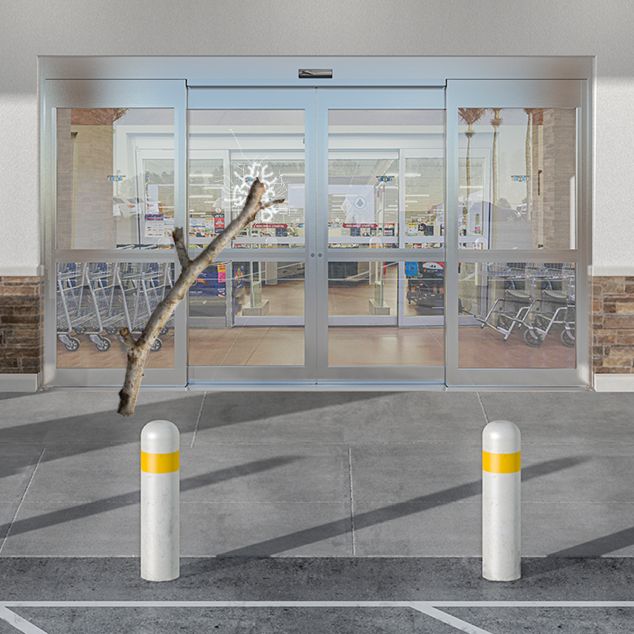

• Level D impact, the standard for high velocity hurricane zones, is test rated at 50/feet per second
• Level E impact is test rated at 80/ft per second
• Dry glazing allows glass to be replaced onsite without requiring the lengthy curing time of traditional wet glazing systems
• Replaceable track minimizes service time and extends the life of the door package
• 9/16“ impact insulated glass (for Cat D&E)
• 1/4“ non-impact glazing
• State of Florida Approval 41647
• Record‘s exclusive S.M.A.R.T. Panel (Self Monitoring Accurate Reporting Technology)

Options

• Finishes include clear anodized, dark bronze anodized, bonewhite, and custom paint, powder coat or anodized finishes.
• Vertical stiles available in narrow or medium
• Optional muntins available in 4.25“ or 6.5“ (total siteline)
• Bottom rail available in 4“, 7“, or 10“
• Fail safe/fail secure electric locking
• Battery back-up
• Exit device
