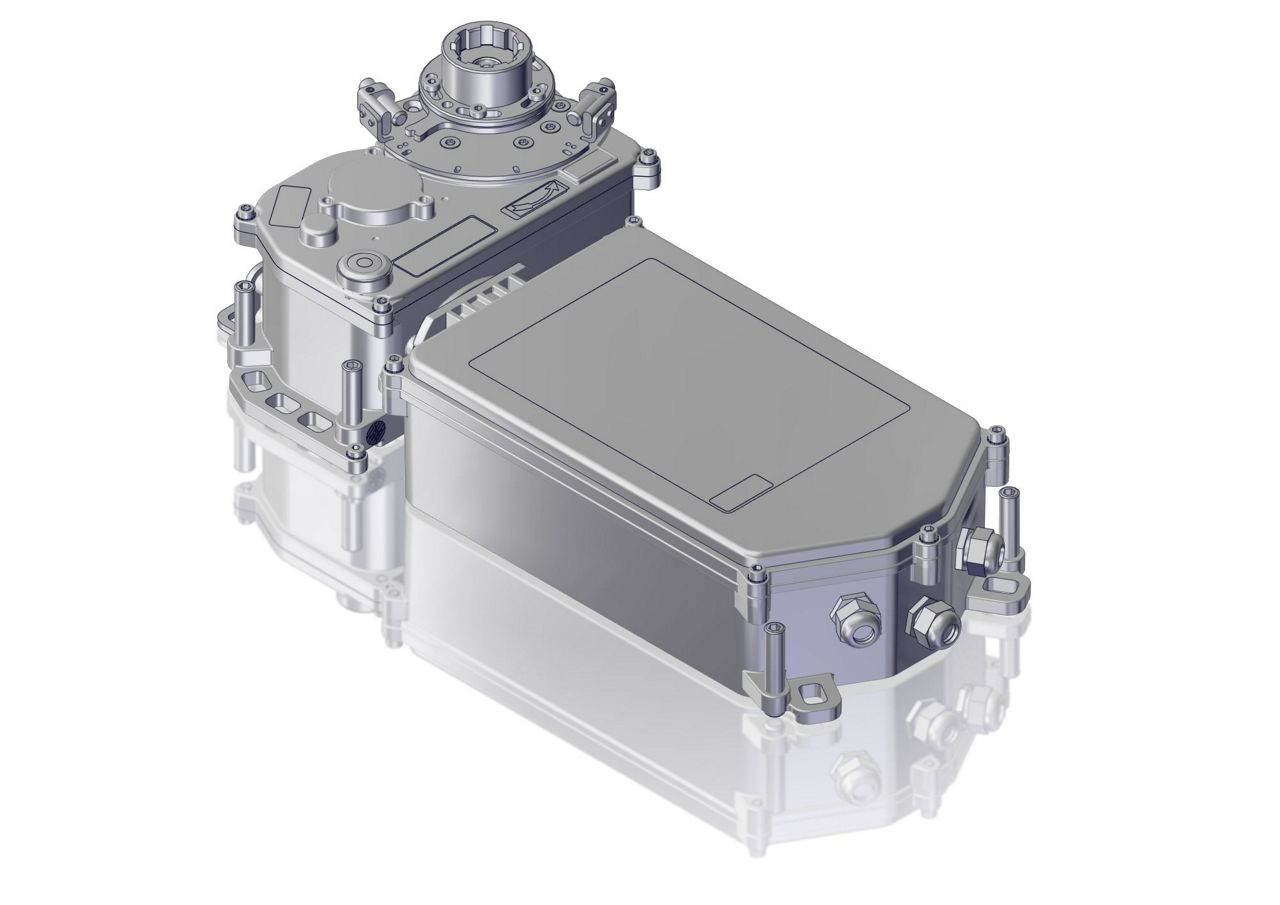

Record C 127 X In-Ground Door Operator

The C 127 X Offset underfloor operator for swing doors expands the DFA 127 product family, which has proven itself for years.

A well-established principle in the development of our products is their striking smoothness as well as the best quality and performance spectrum. With the improved C 127 X Offset underfloor operator, a swing door drive has been designed that operates even under full load and emits no more than a quiet hiss. Thus, the new swing door drive enables, on the one hand, an almost noiseless door movement and, on the other hand, the complex requirements for underfloor drives can be met without any problems.

Talk to an expert View our service agreements
Record C 127 X In-Ground Swing Door Drive
Record C 127 X In-Ground Swing Door Drive

Invisible Record drive – proven, powerful and noiseless

Experience, competence and reliable technology from Record have been combined in the development of C 127 X Offset drive. Thanks to its modular design and flexibility in adapting to the existing door, the C 127 X Offset can be used for a wide variety of applications. Extremely quiet and with high dynamics, even heavy doors weighing up to 600 kg are moved effortlessly.

By constantly improving our Record products, we have achieved a new standard for underfloor drives with the new C 127 X Offset - IP class 69 certified!

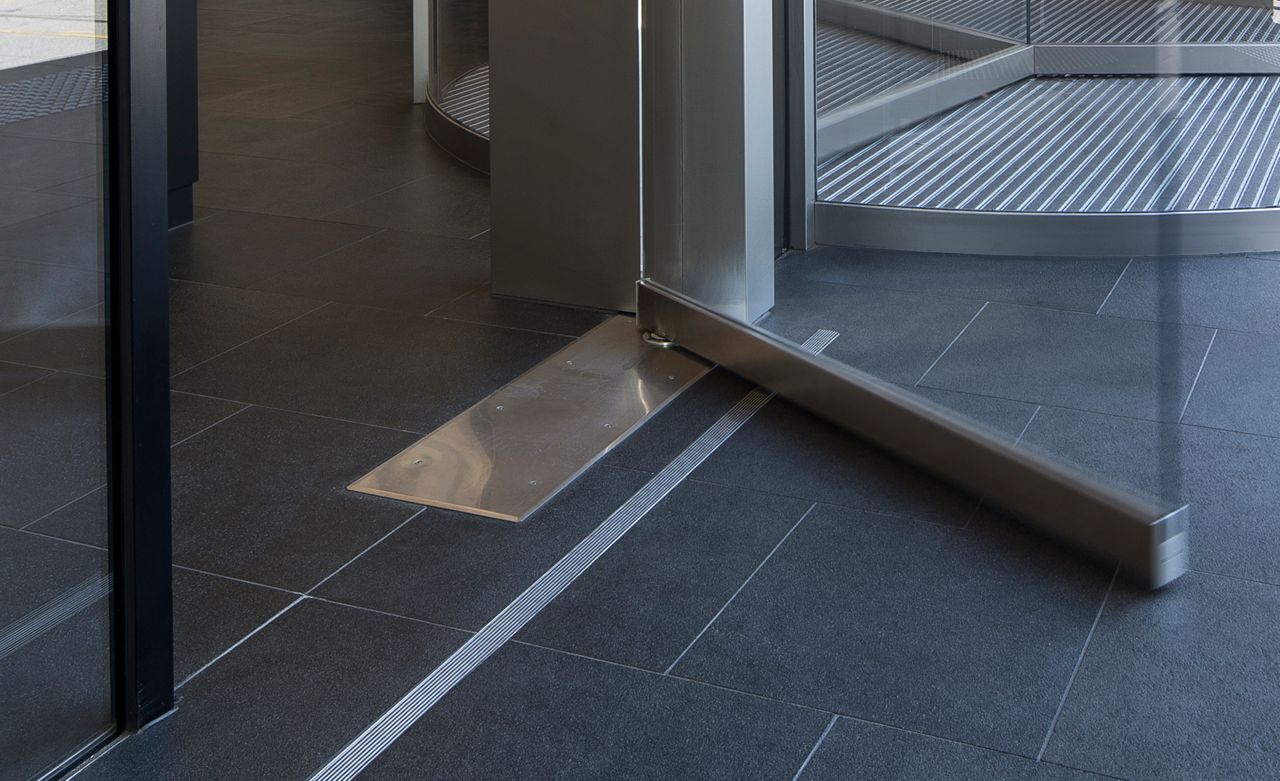

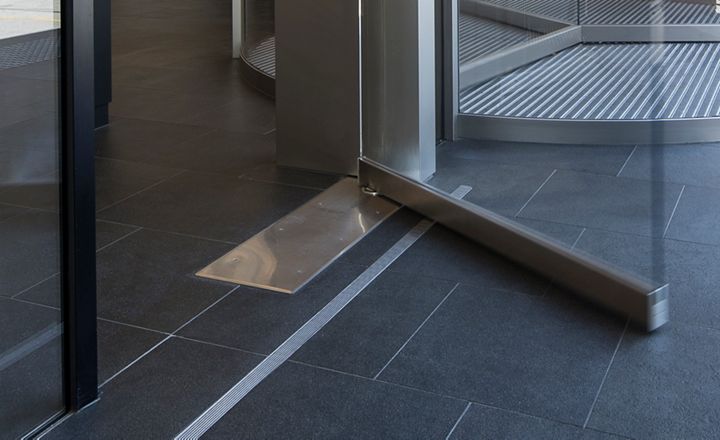

The concealed drive supports the design freedom of the discerning architect. The easy-to-maintain system is recessed into the floor - covered under the floor covering if required - and thus blends harmoniously into any doorway area.

Fully integrated; encapsulated against dirt and liquids

The drive module of the door is placed in its own housing and protected from mechanical influences. Cable feed-throughs for connecting release devices or optional safety sensors are sealed watertight with cable glands.

The strong and improved encapsulation against dirt and moisture according to protection class IP 69 enables unrestricted suitability for everyday use. Melting snow or rain water, as well as washing liquid from floor cleaning machines  do not effect the C 127 X Offset underfloor drive.

The C 127 X Offset underfloor drive is suitable for single and double-leaf frame or all-glass doors. The operating modes can be conveniently selected  using the BDE-D electronic operating unit. The backlit display informs you at any time about the current operating status of the door in the national language and in plain text.

Furthermore, we offer a range of sensors and matching accessories matched to our products, which stand out due to their excellent triggering behaviour, maximum reliability and optimum safety.

  • C 127 X Offset

    Drive Dimensions

    • Length: 561 mm
    • Height: 152 mm
    • Depth: 258 mm

    Adjustable parameters

    • Opening angle: 70° to 120°
    • Open time: Can be selected from 0 to 60 seconds
    • Opening speed: Can be selected from 3 to 20 seconds
    • Closing speed: Can be selected from 5 to 20 seconds

    General technical specifications

    • Door leaf weight: up to 600 kg
    • Electrical data: 100-240 V AC 50 / 60 Hz
    • Power consumption: 25 W in standby mode, 67 W rated power
    • Maximum torque: 80 Nm
    • Maximum moment of inertia of the door leaf: 170 kgm2

    Operating conditions

    • Ambient temperature: − 15 °C to + 50 °C
    • Humidity range: Up to 85% relative humidity, non-condensing
    • Type of protection: IP 69

    C 127 X Center

    Drive Dimensions

    • Length: 641 mm
    • Height: 152 mm
    • Depth: 231 mm

    Adjustable parameters

    • Opening angle: 70° to 120°
    • Open time: Can be selected from 0 to 60 seconds
    • Opening speed: Can be selected from 3 to 20 seconds
    • Closing speed: Can be selected from 5 to 20 seconds

    General technical specifications

    • Door leaf weight: up to 600 kg
    • Electrical data: 100-240 V AC 50 / 60 Hz
    • Power consumption: 25 W in standby mode, 67 W rated power
    • Maximum torque: 80 Nm
    • Maximum moment of inertia of the door leaf: 170 kgm2

    Operating conditions

    • Ambient temperature: − 15 °C to + 50 °C
    • Humidity range: Up to 85% relative humidity, non-condensing
    • Type of protection: IP 70

  • Brochure

    Record_C127X_brochure_en_web(PDF, 1 MB)

    Product drawings

    Record C 127 X In-Ground Swing Door Drive drawing(PDF, 4 MB)

    Product datasheet

    Record C 127 X In-Ground Swing Door Drive datasheet(PDF, 1 MB)

Compatible products

  • i-Record

    With i-Record, setup and service are faster and easier—right from your phone. Bluetooth® connectivity and a user-friendly app put smarter door management in your hands.
