C 127 X

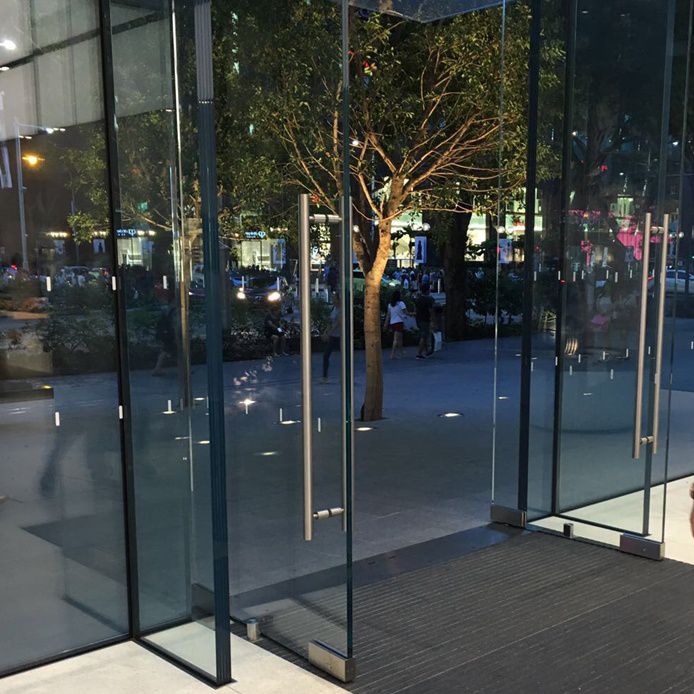

When the requirement for the historic preservation of custom doors or all glass frameless doors dominates your design criteria, the Record C 127 X underfloor swing door operator is the ideal solution.

The C 127 X is the world's first underfloor drive for swing doors with protection class IP69 -- completely watertight! The drive installed in the floor allows through the use of a cardan direct drive, doors with a door leaf weight of up to 1323 lbs (600kg) to operate elegantly and silently.

The two component modular die cast housing with integrated electronic and control unit can be used for both single and double leaf applications. The unique design of the drive allows it to be mounted very close to the facade, which is a great advantage for installation flexibility. With a wide range of options and accessories, the C 127 X can be used in an extensive variety of applications.

Common problems solvable with the C 127 X:

• Arched and slanted headers
• Low soffit conditions
• Intrusive surface mounted operators
• Heavy and historically significant doorways
• Exterior curtain wall doors

Benefits:

• Powerful -- up to 1323 lbs (600kg) door leaf weight
• IP class 68 and IP 69 certified -- watertight operator
• Invisible, noiseless door drive

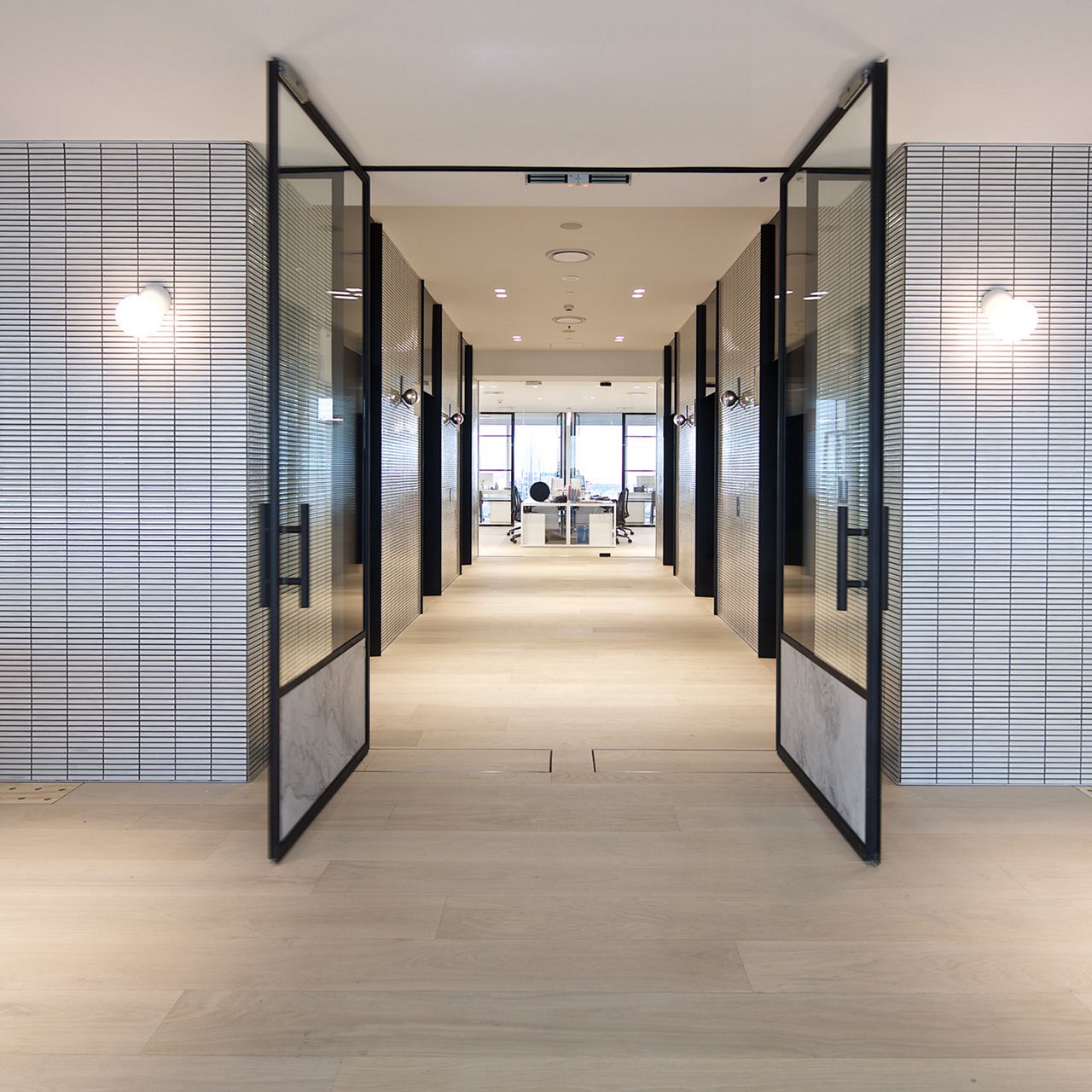

• Suitable for double-leaf door systems
• Integrated wind load brake
• Designed for easy and fast installation
• Low-maintenance & service friendly thanks to the service app

Options:

• Stainless steel cement box
• Threshold plate or Terrazzo tray for invisible integration into the building
• Sliding arm and sliding rail (required for hinged doors)
• Operation unit for tablet access
• Various actuating elements and fuse sensors
