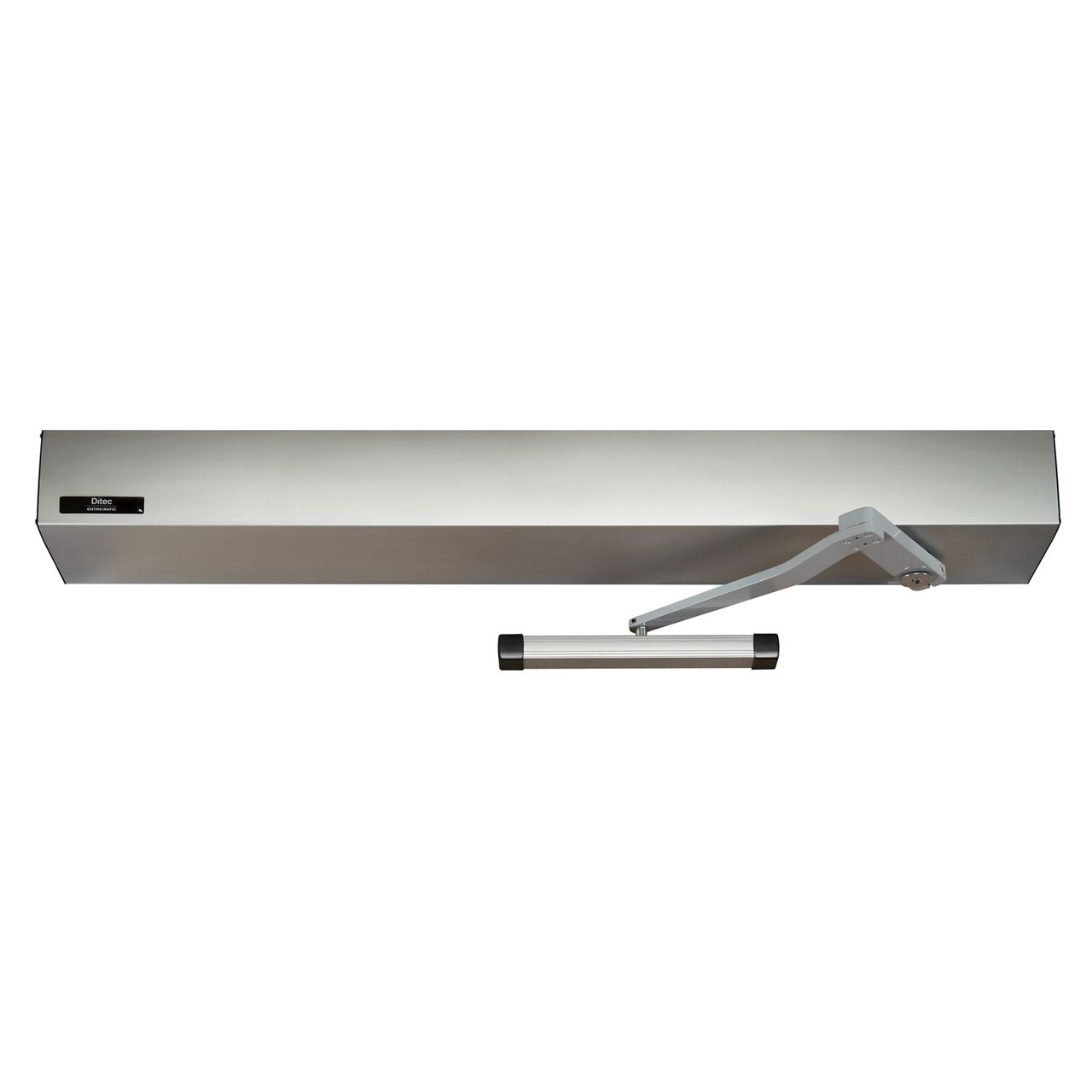

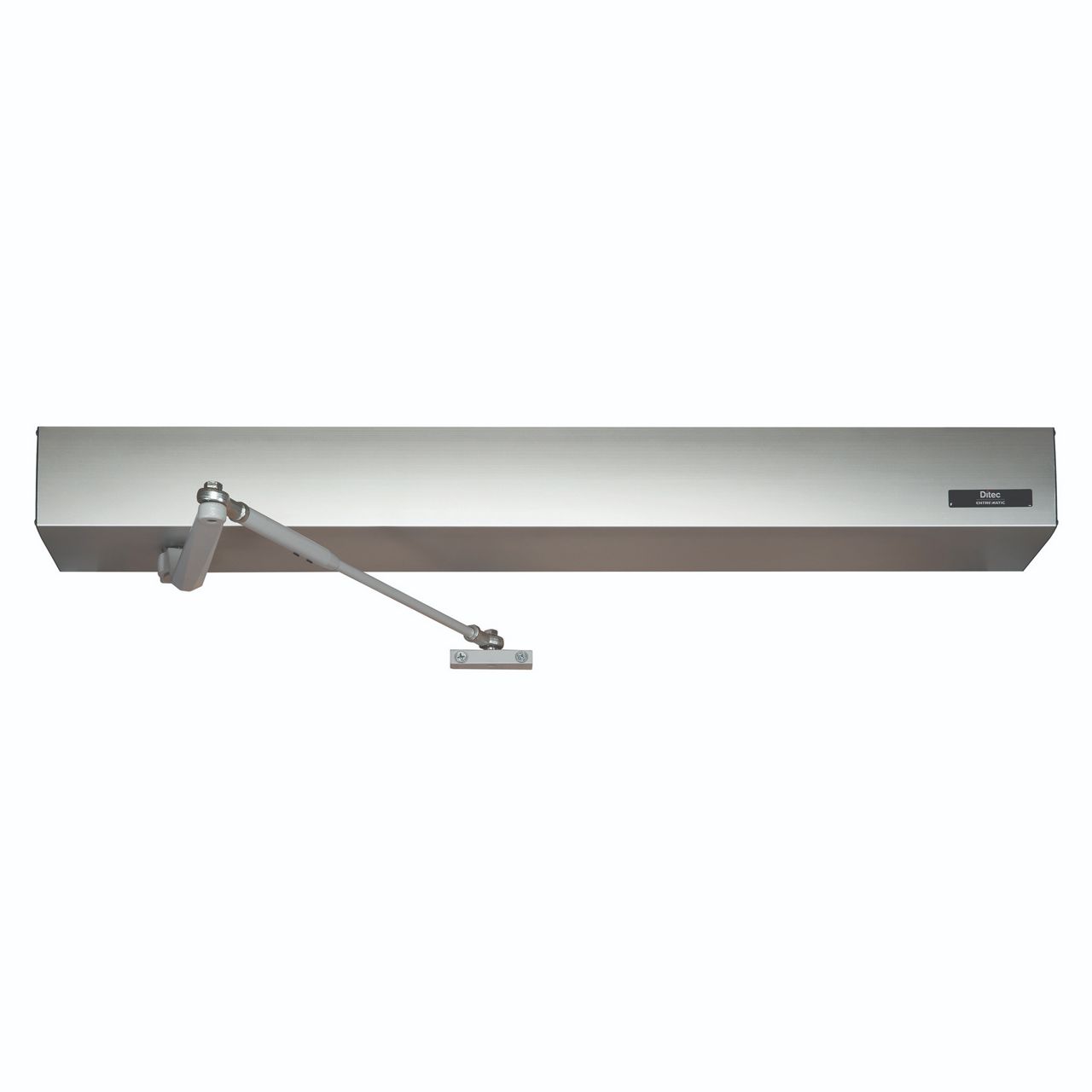

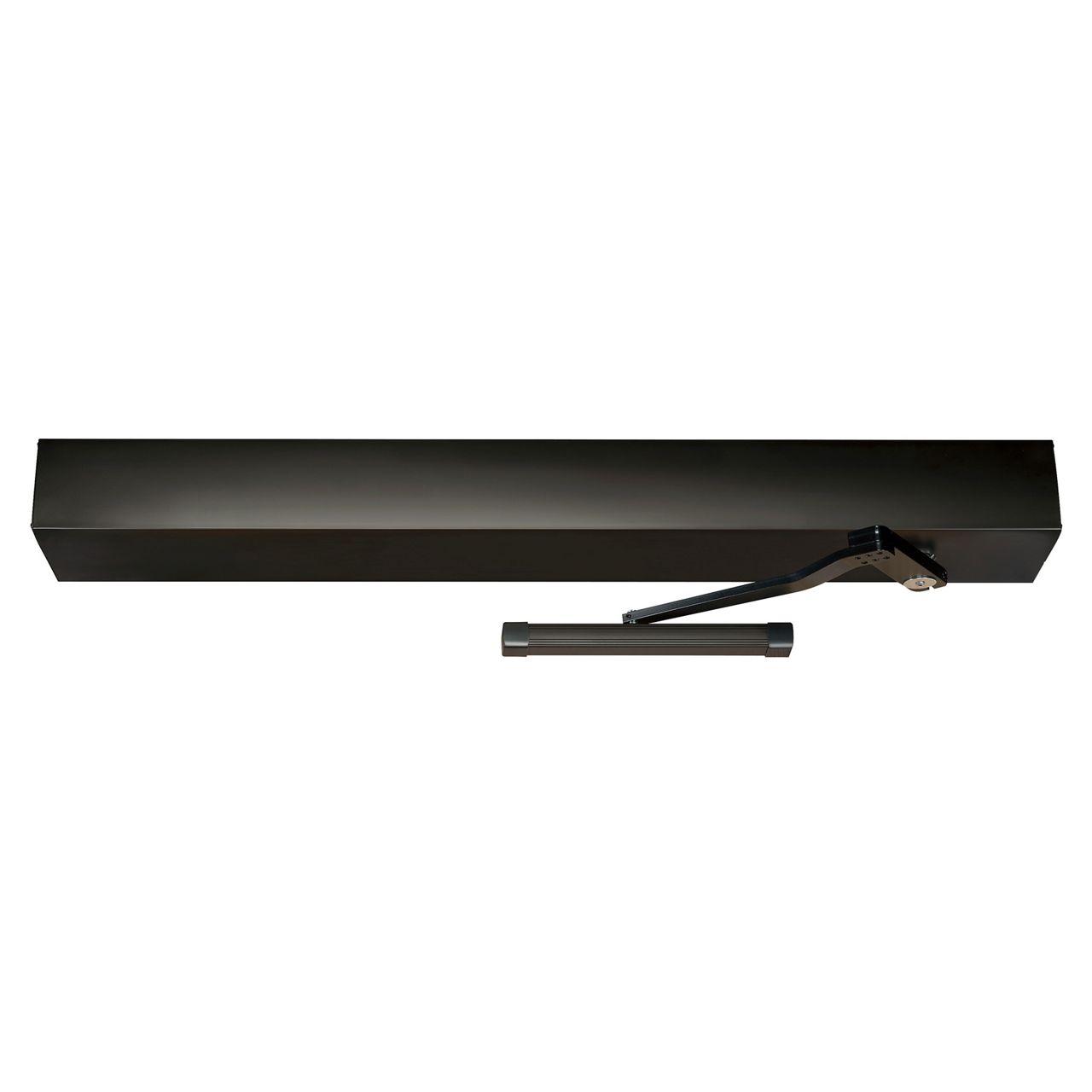

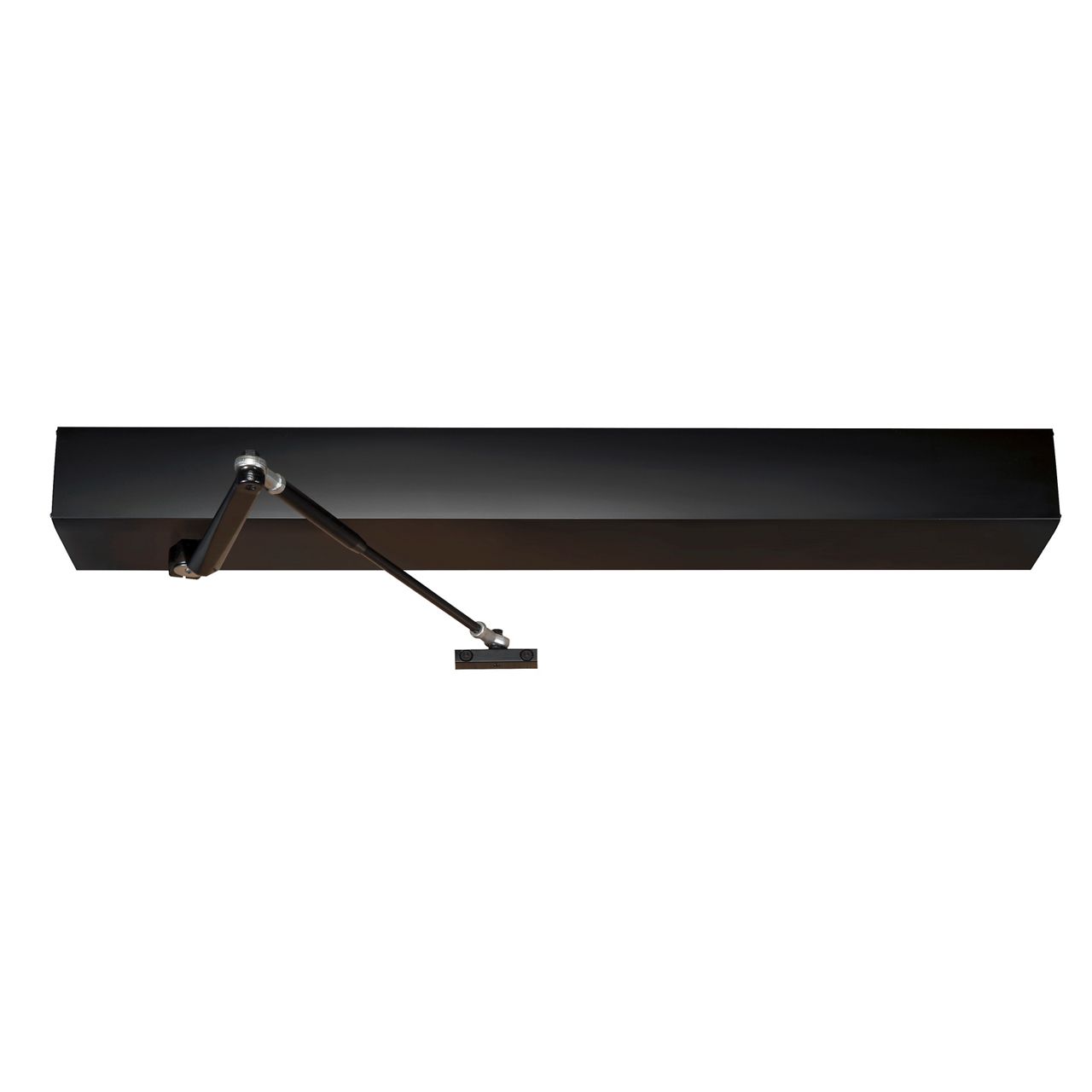

HA8-LP

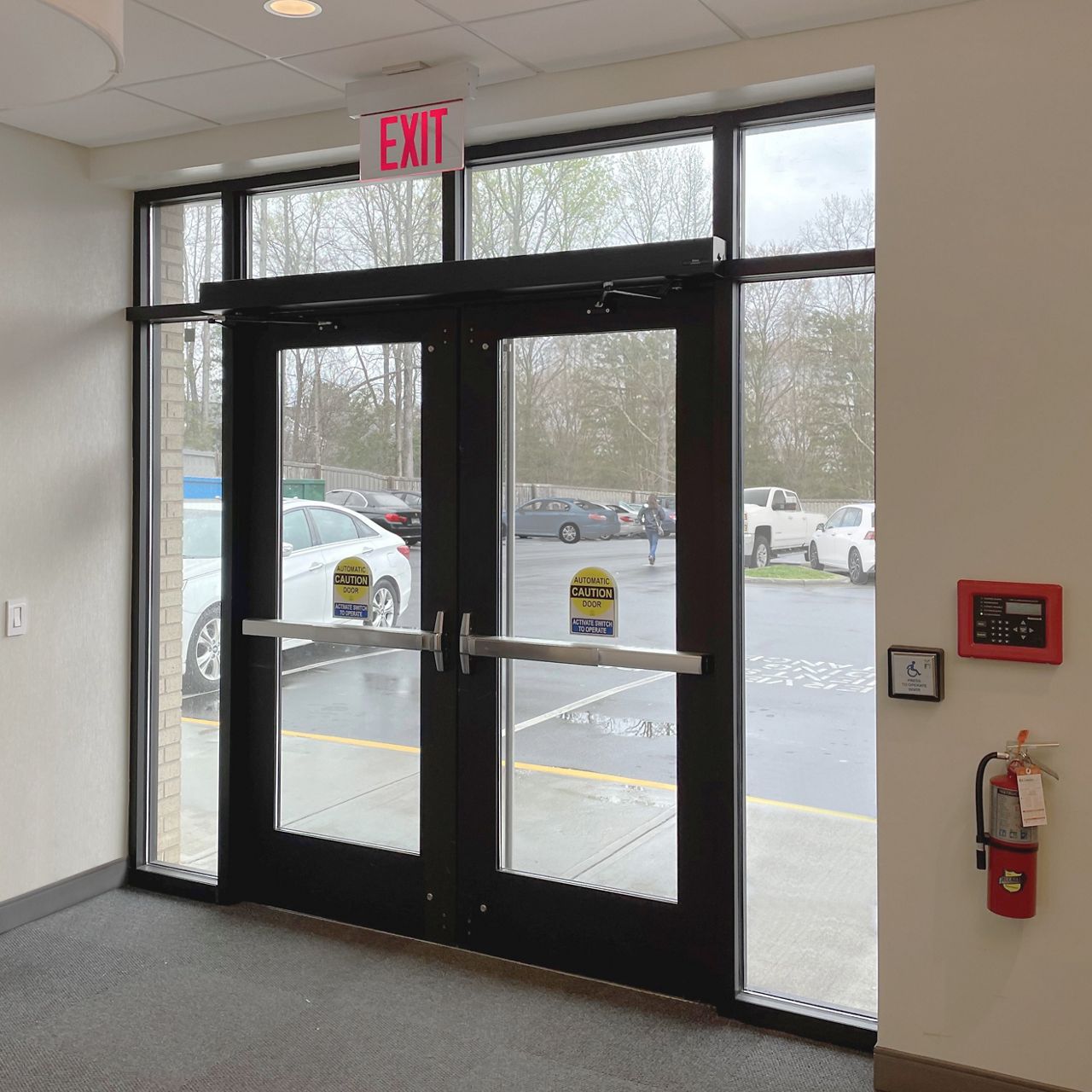

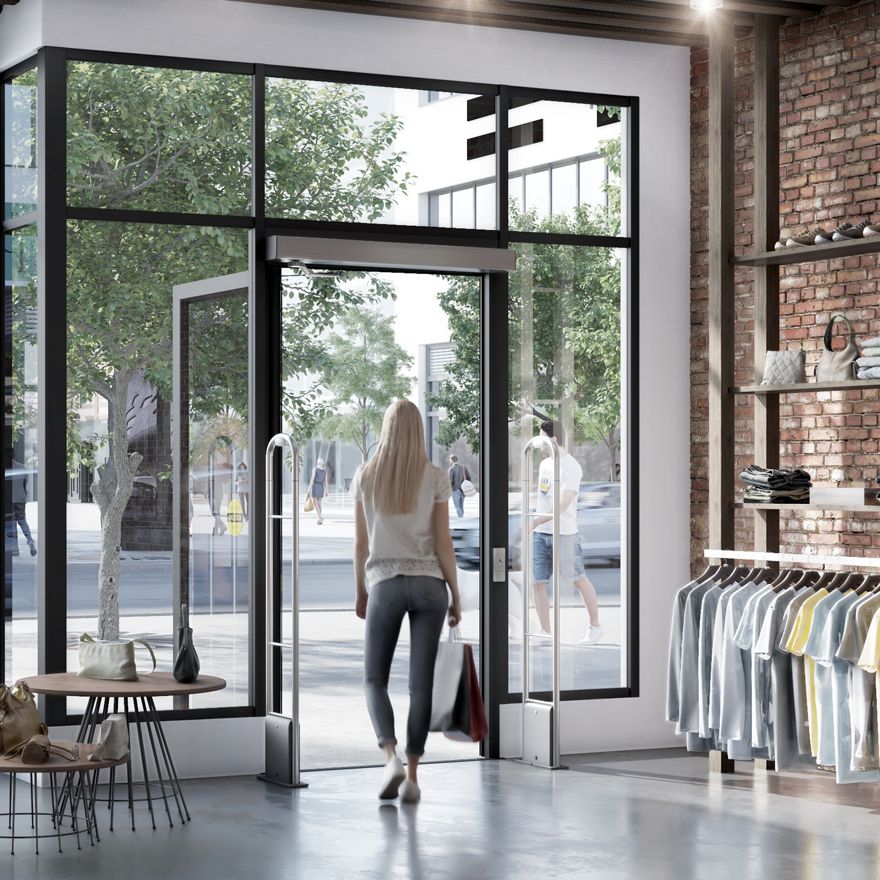

The HA8-LP low energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Quality Heavy Duty Commercial Construction
- High precision gears made for sustained long-term use
- Electro Mechanical Design for simple dependable operation
- Permanent lubrication for maintenance free operation
- Machined alloy gearbox housing
- 1/8th HP motor
- Digital Control Board
Advanced Technology
- On-board programming
- Built in strike/mag lock relay - fail safe or fail secure
- Separate inputs for activation and safety devices
- Plug-n-play design for fast trouble free installation
- Compatible with safety and activation devices
- Integrates with building access & security systems
Durable
- Built to outlast the competition
- Perfect for high traffic locations
Low Energy Overview
ADA
Low energy operators meet the requirement of the Americans with Disabilities Act (ADA). They allow for easy access for disabled individuals by using push plates or other activation devices.
Low Energy

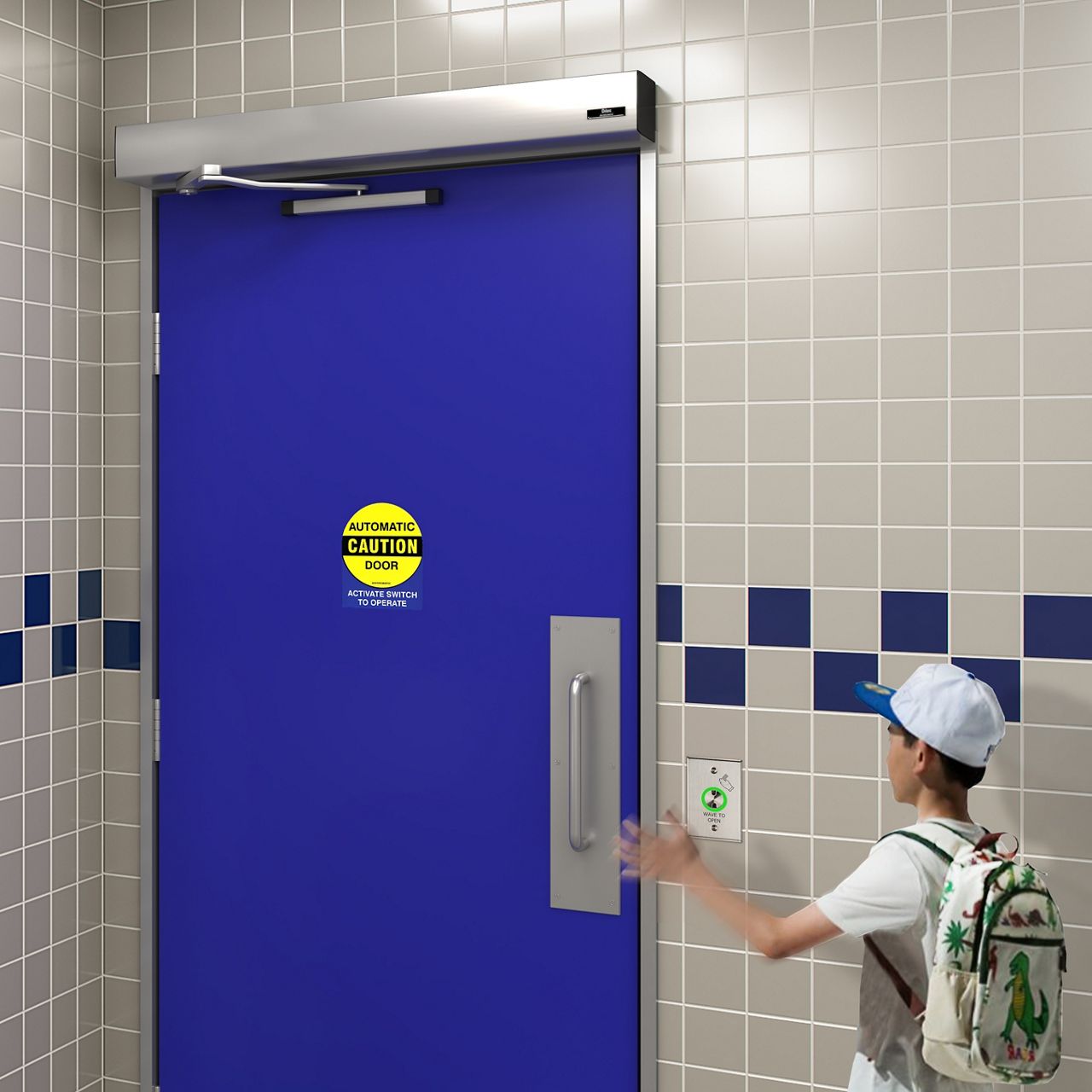

Doors equipped with low energy operators can be opened manually or through the use of a "knowing act" device (i.e., push button, remote, or wave to open).
Push or Pull
Can be used as push or pull.
Fire Rated
UL10C is the standard for positive pressure fire tests of door assemblies.
Installation Videos
Complete Installation
Installation Video by Segment
Introduction
Wiring Instructions
Push Arm Installation
Pull Arm Installation
Universal Arm Installation
Latch and Back Check
Control Board Programming
Wiring an Activation Device
Closing/Final Steps
Tech Tip Videos
Setting Reed Switches
